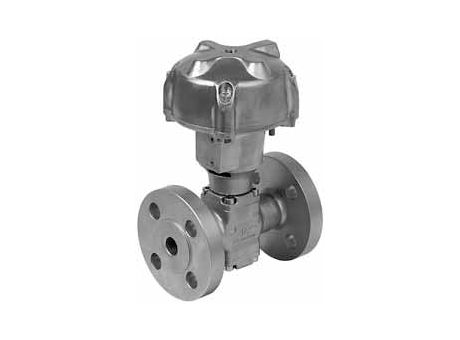

Valves 2/2 pressure operated stainless steel body with flange PN40, ANSI Class 300, DN 15 to 50, NO - Series T298

Manufacturer	ASCO
Description	Valves 2/2 pressure operated stainless steel body with flange PN40, ANSI Class 300, NO - Series T298, DN15
Part number	T298A019
Omniclass number	23.27.33.17

CAD models

Request for quotation

Product selection

Index	Selector	Pipe size	DN	Flow coefficient Kv 1->2 (m³/h)	Flow coefficient Kv 1->2 (l/min)	Flow coefficient Kv 2->1 (m³/h)	Flow coefficient Kv 2->1 (l/min)	Pilot pressure (bar)	Operating pressure differential (bar)	Operator diameter (mm)	Catalogue number
1	1	G1/2	15	3.5	58	3.5	58	10	40	80	T298A019
2	2	G3/4	20	7.2	120	7	117	10	40	100	T298A020
3	3	G1	25	11	183	11	183	10	40	100	T298A021
4	4	G1 1/4	32	18	300	15	250	10	40	150	T298A022
5	5	G1 1/2	40	28.2	470	28.2	470	10	40	150	T298A023
6	6	G2	50	53	883	53	883	10	40	200	T298A024

Options and accessories

Metal-to-metal sealing disc

Documentation
