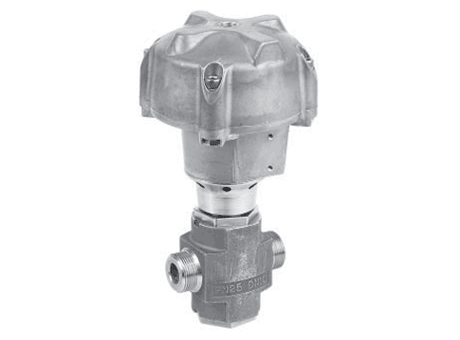

Valves 2/2 pressure operated for stream applications external theaded ports PN40, NO - Series R298

Manufacturer	ASCO
Description	Valves 2/2 pressure operated for stream applications external theaded ports PN40, NO - Series R298, Pilot connection G 1/8, DN10
Part number	R298A613
Mass	2 kg
Omniclass number	23.27.33.17

CAD models

Request for quotation

Product selection

Index	Selector	pilot connection	pipe size	DN	flow coefficient Kv (m³/h)	flow coefficient Kv (l/min)	maximum allowable pressure (bar)	pilot pressure min. (bar)	pilot pressure, max. (bar)	operator diameter (mm)	catalogue number	weight (kg)
1	1	G 1/8	M25x1,5	10	2.66	38	40	*	10	80	R298A613	2
2	2	G 1/8	M36x2	20	6.12	102	40	*	10	100	R298A642	3.5
3	3	1/8 NPT	M25x1,5	10	2.66	38	40	*	10	80	R298A633	2
4	4	1/8 NPT	M36x2	20	6.12	102	40	*	10	100	R298A662	3.5

Documentation
