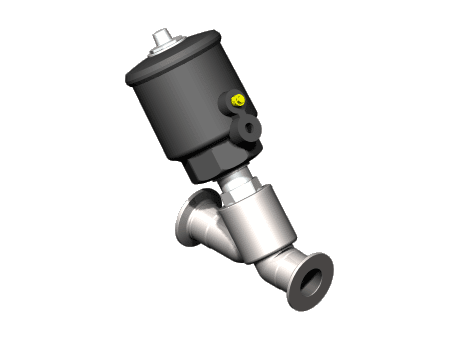

Valve 2/2 pressure operated stainless steel body CLAMP connection NC entry above the disc - series S290

Manufacturer	ASCO
Description	Valve 2/2 pressure operated series S290, S290A824
Part number	S290A824

CAD models

Request for quotation

Product selection

Index	Selector	DN (mm)	O.D. of stub (mm)	Operator diameter (mm)	Mass (kg)
1	1	10	34	32	0.4
2	2	15	34	32	0.43
3	3	15	34	50	0.9
4	4	15	34	63	1.2
5	5	20	50.5	32	0.59
6	6	20	50.5	50	1
7	7	20	50.5	63	1.3
8	8	25	50.5	50	1.4
9	9	25	50.5	63	1.7
10	10	32	64	63	2.1
11	11	32	64	90	2.7
12	12	40	64	63	2.8
13	13	40	64	90	3.4
14	14	50	77.5	63	3.7
15	15	50	77.5	90	4.2
16	16	65	91	90	6.2
17	17	65	91	125	8.8

Option and accessories

Adapter plate for NAMUR pad mounting pilot

Without

Oxygen service

Vacuum application up to 1.33 10-3 mbar

Documentation
