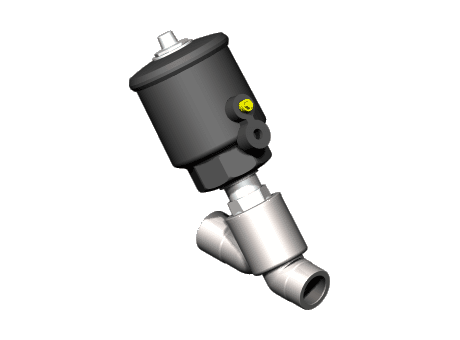

Valve 2/2 pressure operated stainless steel body butt welding connection NC entry above the disc - series S290

Manufacturer	ASCO
Description	Valve 2/2 pressure operated series S290, S290A826
Part number	S290A826

CAD models

Request for quotation

Product selection

Index	Selector	DN (mm)	O.D. of stub (mm)	Operator diameter (mm)	Mass (kg)
1	1	10	18.5	32	0.37
2	2	15	21.3	32	0.4
3	3	15	21.3	50	0.9
4	4	20	26.9	32	0.45
5	5	15	21.3	63	1.2
6	6	20	26.9	50	1
7	7	20	26.9	63	1.3
8	8	25	33.7	50	1.3
9	9	25	33.7	63	1.6
10	10	32	42.4	63	2
11	11	32	42.4	90	2.6
12	12	40	48.3	63	2.8
13	13	40	48.3	90	3.3
14	14	50	60.3	63	3.6
15	15	50	60.3	90	4.1
16	16	65	76.1	90	6.1
17	17	65	76.1	125	8.7

Option and accessories

Adapter plate for NAMUR pad mounting pilot

Without

Oxygen service

Vacuum application up to 1.33 10-3 mbar

Documentation
