Round cylinders Ø 8 to 25 mm - Single acting rod in - ISO 6432 - Series 435

Manufacturer	ASCO
Standard	ISO 6432

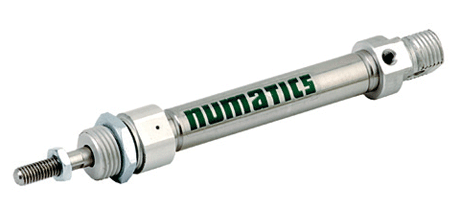

Description	Round cylinders Ø 8 mm, Stroke = 25 mm, Single acting rod in
Part number	G435AG1N0025A00
Mass	0.035 kg

CAD models

Request for quotation

Product selection

Index	Selector	Bore Ø (mm)	AM (mm)	B (mm)	BC (mm)	ØBE	BF (mm)	ØCD	D (mm)	ØEE	EW	F (mm)	ØKK	L (mm)	MM (mm)	PJ (mm)	S (mm)	T (mm)	WH (mm)	XC (mm)	Y (mm)	Z (mm)	ZB (mm)
1	1	8	12	16	12	M12x1,25	12	4 H 9	15	M5	8 d 13	46	M4x0,7	6	4	34	2	86	16	64	22	7	74
2	2	10	12	16	12	M12x1,25	12	4 H 9	15	M5	8 d 13	46	M4x0,7	6	4	34	2	86	16	64	22	7	74
3	3	12	16	19	14	M16x1,5	14	6 H 11	18	M5	12 d 11	48.5	M6x1	9	6	34.5	3	100.3	22	75	29	10	84.5
4	4	16	16	19	14	M16x1,5	14	6 H 11	18	M5	12 d 11	55	M6x1	9	6	41.5	3	107	22	82	28.5	10	91
5	5	20	20	27	17.5	M22x1,5	17.5	8 H 11	25.4	G 1/8	16 d 11	63.5	M8x1,25	12	8	47.3	4	125	24	95	32	13	105
6	6	25	22	30	17.5	M22x1,5	17.5	8 H 11	28.5	G 1/8	16 d 11	68.5	M10x1,25	12	10	52.5	5	136	28	104	36	17	114
