Round cylinders Ø 32 to 63 mm - Double acting - ISO 6431 - Series 438

Manufacturer	ASCO
Standard	ISO 6431

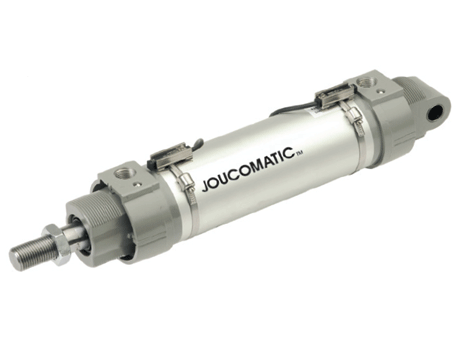

Description	Round cylinder Ø 32 mm, Stroke = 25 mm, Double acting
Part number	G438A3SK0025A00
Mass	0.345

CAD models

Request for quotation

Product selection

Index	Selector	Bore Ø (mm)	AM (mm)	ØBE (mm)	BF (mm)	CD (mm)	D (mm)	ØEE	EW (mm)	ØG (mm)	H (mm)	ØKK	L (mm)	M (mm)	ØMM (mm)	MR (mm)	P (mm)	S (mm)	SW (mm)	T (mm)	V (mm)	WH (mm)	XD (mm)	ZB (mm)
1	1	32	22	30	16	10	39	G1/8	26	38	13.5	M10 x 1,25	92	49	12	10	24	5	10	16	3.5	27	143	119
2	2	40	24	36	19	12	46	G1/4	28	45	16.5	M12 x 1,25	107	53	18	12	24	6	13	18	4.7	29	160	136
3	3	50	32	45	23,5 - 18,5	12	60	G1/4	32	60	14	M16 x 1,5	110	67	18	12	25.5	8	16	24	5.2	35	170	145
4	4	63	32	45	23	16	75	G3/8	40	75.5	17	M16 x 1,5	125	67	22	16	31	8	16	24	5.5	35	191	160

Stroke (mm)

Options

Rod extension (mm)

Documentation
