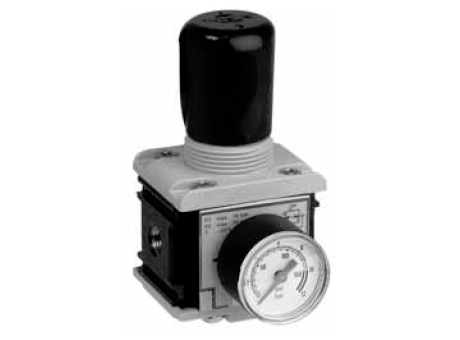

Regulator - G1/4 to G3/4 - MODULAIR 112 range

Manufacturer	ASCO
Description	Regulator - G1/4 - MODULAIR 112 range
Part number	34203058 662 540 970 524 612 021

CAD models

Request for quotation

Product selection

Index	Selector	Port size	Max. inlet pressure (bar)	Standard controlled pressure	Low controlled pressure	Max. flow (l/min)	Max. flow (dm³/s)	Gauge dia. (mm)
1	1	G1/4	16	0,5 - 10 bar	0,2 - 3 bar	1800	30	50
2	2	G3/8	16	0,5 - 10 bar	0,2 - 3 bar	3000	50	50
3	3	G1/2	16	0,5 - 10 bar	0,2 - 3 bar	3000	50	50
4	4	G3/4 (Non intented for the combination)	16	0,5 - 12 bar	0,2 - 3 bar	7000	117	50
5	5	G3/4 (Intented for the combination)	16	0,5 - 12 bar	0,2 - 3 bar	7000	117	50

Adjustment range

Oxygen service

Gauge

Locking device

Option

Documentation
