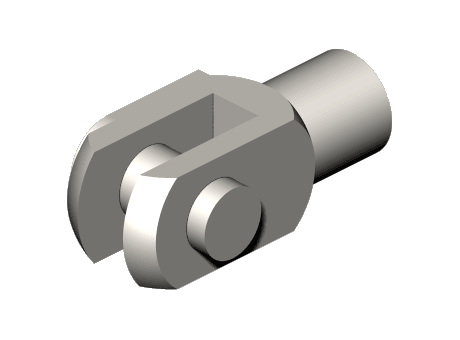

Female rod clevis - AP2

Manufacturer	ASCO
Standard	ISO 15552, AFNOR NF ISO 15552, DIN ISO 15552, ISO 8140, ISO 21287
Description	Clevis for a cylinder with a M4 x 0,7 rod
Part number	43900193
Mass	0.01 kg

CAD models

Request for quotation

Product selection

Index	Selector	Codes	Rod ØM	Max length (mm)	Max width (mm)	Thickness (mm)	Mass (kg)
1	6	43900193	M4 x 0,7	16	4	8	0.01
2	7	43900159	M6 x 1	24	6	12	0.02
3	8	43900161	M8 x 1,25	32	8	16	0.05
4	9	43400016	M10 x 1,25	40	10	20	0.1
5	1	43400017	M12 x 1,25	48	12	24	0.15
6	2	43400018	M16 x 1,5	64	16	32	0.33
7	3	43400019	M20 x 1,5	80	20	40	0.67
8	4	43400020	M27 x 2	110	30	55	1.81
9	5	43400021	M36 x 2	144	35	70	3.85
