Double acting cylinder with profiled barrel, Ø 32 to 100 mm - ISO 15552-AFNOR-DIN with pneumatic cushioning - 453 series

Manufacturer	ASCO
Standard	ISO 15552, AFNOR NF ISO 15552, DIN ISO 15552

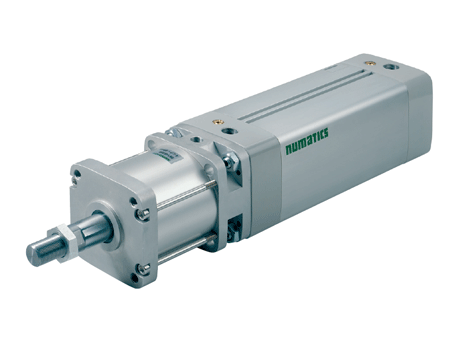

Description	Double acting cylinder with profiled barrel, 453 series, Ø 40 mm, stroke = 50 mm, Dynamic rod-locking device
Part number	G453A4S50050A00
Mass	2.265 kg

CAD models

Request for quotation

Product selection

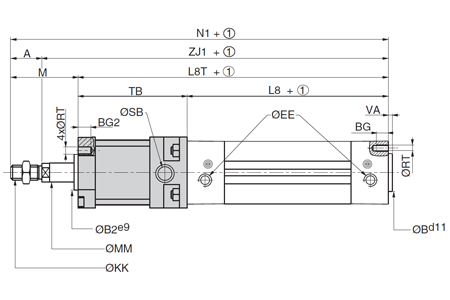

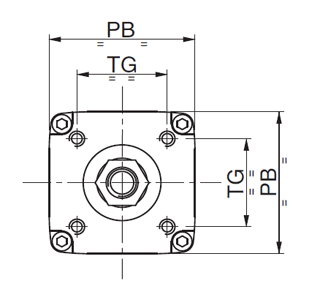

Index	Selector	Diameter (mm)	BG (mm)	ØEE	ØKK	ØRT	TG (mm)	PB (mm)	ØSB
1	2	40	16	G1/4	M12x1,25	M6	38 ±0,5	70	G1/8
2	3	50	16	G1/4	M16x1,5	M8	46,5 ±0,5	75	G1/4
3	4	63	16	G3/8	M16x1,5	M8	56,5 ±0,5	95	G1/4
4	5	80	17	G3/8	M20x1,5	M10	72 ±0,5	95	G1/4
5	6	100	17	G1/2	M20x1,5	M10	89 ±0,5	120	G1/4

Stroke

Rod options 1

Standard

Rod options 2

Dynamic rod-locking device

Options

Without

Rod extension (mm)
