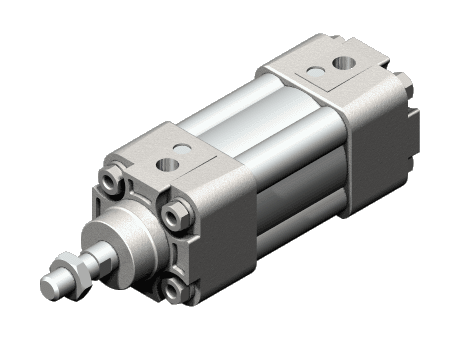

Double acting cylinder Ø 32 to 80 mm - 450 series - Type PES Omega (with profiled barrel)

Manufacturer	ASCO
Standard	ISO 6431, AFNOR NFE 49003, VDMA 24562
Description	PES Omega cylinder with profiled barrel, barrel aluminium, single rod, cushioned, equipped for detectors, bore 32 mm, stroke 25 mm
Part number	450509700025
Part number1	PES Omega 32 A 25-DM
Mass	0.605 kg

CAD models

Request for quotation

Product selection

Index	Selector	Bore Ø (mm)	Rod ØM	Threaded length of the cylinder body (mm)	Connection Ø
1	1	32	M10x1,25	22	G1/8
2	2	40	M12x1,25	24	G1/4
3	3	50	M16x1,5	32	G1/4
4	4	63	M16x1,5	32	G3/8
5	5	80	M20x1,5	40	G3/8

Stroke (mm)
