Double acting cylinder Ø 32 to 100 mm - 450 series - Type PES (with tie rods) with static rod-locking device

Manufacturer	ASCO
Standard	ISO 15552, AFNOR NF ISO 15552, DIN ISO 15552, ISO 6431, AFNOR NFE 49003, VDMA 24562

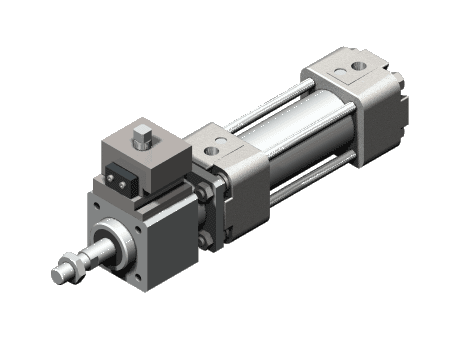

Description	PES cylinder with static rod-locking device, with tie-rods, barrel aluminium, cushioned, equipped for detectors, bore 32 mm, stroke 50 mm
Part number	463000230050
Mass	1.1075 kg

CAD models

Request for quotation

Product selection

Index	Selector	Bore Ø (mm)	Rod ØM	Threaded length of the cylinder body (mm)	Holding force (N)	Connection Ø
1	1	32	M10x1,25	22	790	G1/8
2	2	40	M12x1,25	24	1240	G1/4
3	3	50	M16x1,5	32	1930	G1/4
4	4	63	M16x1,5	32	3060	G3/8
5	5	80	M20x1,5	40	5400	G3/8
6	6	100	M20x1,5	40	7700	G1/2

Manual override

Integrated pilot control for rod-locking device

Without

Integrated detection of the position of the manual override

Version without position detection and startup interlock system

Detector

Stroke (mm)

Rod extension (mm)

Documentation
