COMPACT CYLINDERS Ø 20 to 100 mm with profiled barrel - Double acting - ISO 21287 - Single rod - Series 449

Manufacturer	ASCO
Standard	ISO 21287

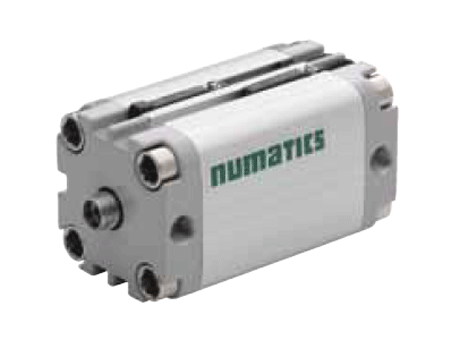

Description	COMPACT cylinder, double acting, single rod, bore : 20 mm, stroke : 5 mm
Part number	G449ALSG0005A00
Mass	0.138 kg

CAD models

Request for quotation

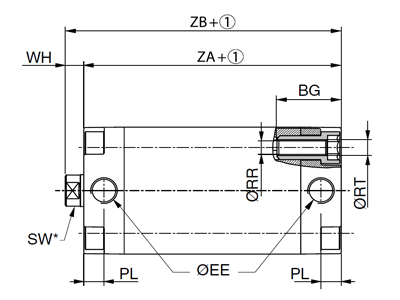

Product selection

Index	Selector	Cylinder bore (mm)	E (mm)	EE	ØKF	ØKK	ØMM (mm)
1	1	20	36	M5	M6	M8x1,25	10
2	2	25	40	M5	M6	M8x1,25	10
3	3	32	48	G 1/8	M8	M10x1,25	12
4	4	40	54	G 1/8	M8	M10x1,25	12
5	5	50	66	G 1/8	M10	M12x1,25	16
6	6	63	78	G 1/8	M10	M12x1,25	16
7	7	80	96	G 1/8	M12	M16x1,5	20
8	8	100	115	G 1/8	M12	M16x1,5	25
