T Shape Linear Shaft Supporter - Slitty Type - GHTK

Manufacturer	ACME Precision Industry Co.,Ltd.
Description	T Shape Linear Shaft Supporter-Slitty Type GHTK8-10
Part number	GHTK8-10

CAD models

Request for quotation

Product selection

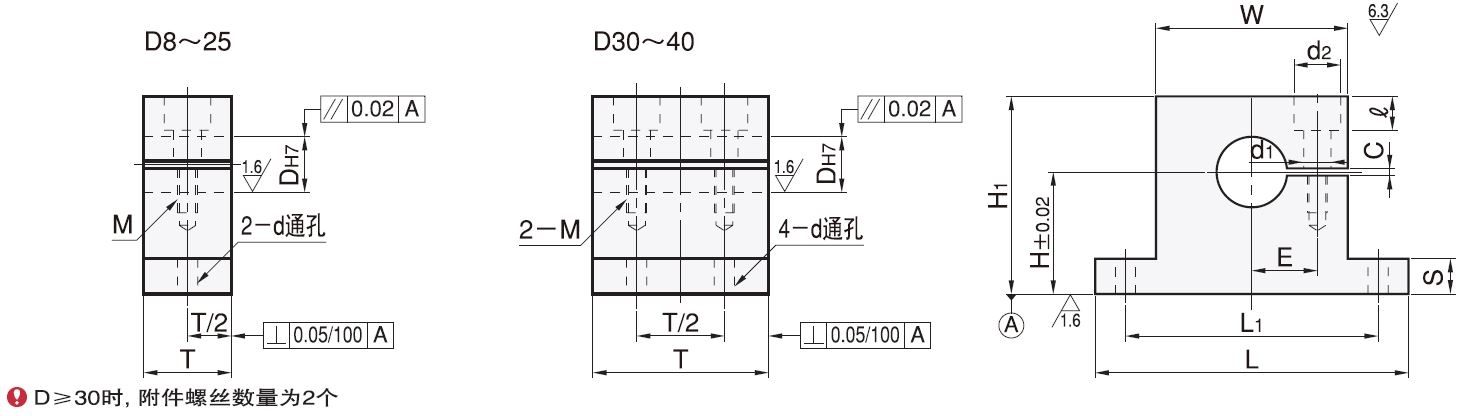

Index	Selector	D	H	L	H1	T	S	W	L1	d	M	E	d1	d2	l	C
1	1	8	10 15 20 25 30 40	62	H+10	15	6	38	50	6.5	M6 deep12 (Transfixion when H less than 20）	11	6.5	11	6.5	2
2	2	10	10 15 20 25 30 40 50 60	62	H+11	15	6	38	50	6.5	M6 deep12 (Transfixion when H less than 20）	12	6.5	11	6.5	2
3	3	12	10 15 20 25 30 40 50 60	62	H+12	18	6	38	50	6.5	M6 deep12 (Transfixion when H less than 20）	12	6.5	11	6.5	2
4	4	13	15 20 25 30 40 50 60	62	H+12	18	6	38	50	6.5	M6 deep12 (Transfixion when H less than 20）	12	6.5	11	6.5	2
5	11	15	15 20 25 30 40 50 60	62	H+14	20	6	38	50	6.5	M6 deep12 (Transfixion when H less than 20）	12	6.5	11	6.5	2
6	5	16	15 20 25 30 40 50 60	62	H+14	20	6	38	50	6.5	M6 deep12 (Transfixion when H less than 20）	12	6.5	11	6.5	2
7	6	20	20 25 30 40 50 60 80	85	H+18	25	8	53	70	9	M8 deep16 (Transfixion when H less than 25）	18	9	14	9	2
8	7	25	20 25 30 40 50 60 80	85	H+18	30	8	53	70	9	M8 deep16 (Transfixion when H less than 25）	18	9	14	9	2
9	8	30	25 30 40 50 60 80	102	H+21	35	10	62	82	6.5	M8 deep16 (Transfixion when H less than 25）	22	9	14	9	3
10	9	35	25 30 40 50 60 80	106	H+24	35	10	66	86	6.5	M8 deep16 (Transfixion when H less than 25）	24	9	14	9	3
11	10	40	40 50 60 80	111	H+27	40	10	71	91	9	M8 deep16 (Transfixion when H less than 25）	27	9	14	9	3

Material Treatment and Accessories

Machining Locating Hole

Increase Accuracy of Mounting hole

Documentation

Technical Documents
