Straight Type-Single Retainer-LMG

Manufacturer	ACME Precision Industry Co.,Ltd.
Description	Straight Type-Single Retainer- LM4-UU
Part number	LM4-UU

CAD models

Request for quotation

Product selection

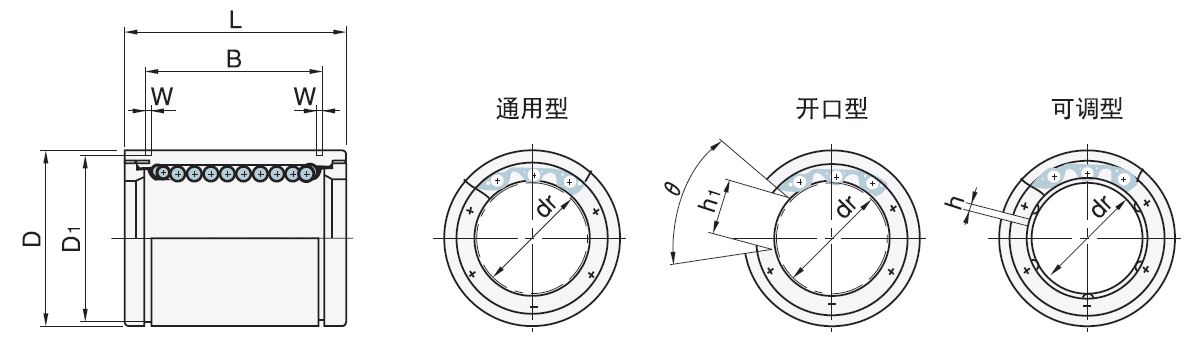

Index	Selector	Type	dr	D	L	B	W	D1	h	h1	θ(°)	Off Centre max.	Radial Clearance max.	Column Number of Balls	C(dynamic)N	Co(static)N	g
1	1	Standard Type	4	8	12	0	0	0	0	0	0	0.008	-0.003	4	88	127	2
2	2	Standard Type	5	10	15	10.2	1.1	9.6	0	0	0	0.008	-0.003	4	167	206	4
3	3	Standard Type	6	12	19	13.5	1.1	11.5	1	0	0	0.012	-0.003	4	206	265	8.5
4	4	Standard Type	8	15	24	17.5	1.1	14.3	1	0	0	0.012	-0.003	4	274	392	17
5	5	Standard Type	10	19	29	22	1.3	18	1	0	0	0.012	-0.004	4	372	549	36
6	6	Standard Type	12	21	30	23	1.3	20	1.5	8	80	0.012	-0.004	4	510	784	42
7	7	Standard Type	13	23	32	23	1.3	22	1.5	9	80	0.012	-0.004	4	510	784	49
8	8	Standard Type	16	28	37	26.5	1.6	27	1.5	11	80	0.012	-0.006	5	774	1180	76
9	9	Standard Type	20	32	42	30.5	1.6	30.5	1.5	11	60	0.015	-0.006	5	882	1370	100
10	10	Standard Type	25	40	59	41	1.85	38	2	12	50	0.015	-0.006	6	980	1570	240
11	11	Standard Type	30	45	64	44.5	1.85	43	2.5	15	50	0.015	-0.008	6	157	2740	270
12	12	Standard Type	35	52	70	49.5	2.1	49	2.5	17	50	0.02	-0.008	6	1670	3140	425
13	13	Standard Type	40	60	80	60.5	2.1	57	3	20	50	0.02	-0.01	6	2160	4020	654
14	14	Standard Type	50	80	100	74	2.6	76.5	3	25	50	0.02	-0.013	6	3820	7940	1700
15	15	Standard Type	60	90	110	85	3.15	86.5	3	30	50	0.025	-0.013	6	4700	10000	2000
16	16	European Standard Type	5	12	22	14.5	1.1	11.5	1	0	0	0.012	-0.003	4	206	265	11
17	17	European Standard Type	8	16	25	16.5	1.1	15.2	1	0	0	0.012	-0.003	4	265	402	22
18	18	European Standard Type	12	22	32	22.9	1.3	21	1.5	7.5	78	0.012	-0.004	4	510	784	45
19	19	European Standard Type	16	26	36	24.9	1.3	24.9	1.5	10	78	0.012	-0.004	5	578	892	60
20	20	European Standard Type	20	32	45	31.5	1.6	30.3	2	10	60	0.015	-0.006	5	862	1370	102
21	21	European Standard Type	25	40	58	44.1	1.85	37.5	2	12.5	60	0.015	-0.006	6	980	1570	235
22	22	European Standard Type	30	47	68	52.1	1.85	44.5	2	12.5	50	0.015	-0.008	6	1570	2740	360
23	23	European Standard Type	40	62	80	60.6	2.15	59	3	16.8	50	0.017	-0.008	6	2160	4020	770
24	24	European Standard Type	50	75	100	77.6	2.65	72	3	21	50	0.017	-0.013	6	3820	7940	1250
25	25	European Standard Type	60	90	125	101.7	3.15	86.5	3	27.2	54	0.02	-0.013	6	4700	9800	2220

Material and Temperature

LM:SUJ2(shell-58HRC～),resin(holder),NBR(sealing ring),-20～80℃
