Straight Linear Shaft - One End Thread DBB/DBRB/DBAB/DBSB/DBVB/DBMB/DBNB Series

Manufacturer	ACME Precision Industry Co.,Ltd.

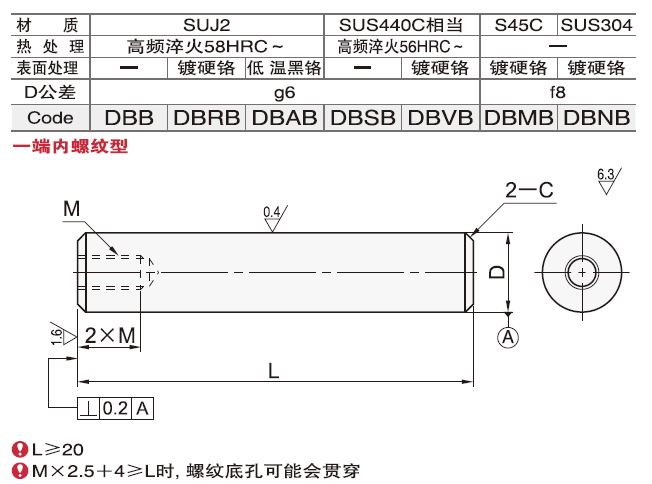

Description	Straight Linear Shaft - One End Thread DBB4-L180-M2
Part number	DBB4-L180-M2

CAD models

Request for quotation

Product selection

Index	Selector	D	Lmin	Lmax	Rmax	Cmax
1	1	4	10	400	0.2	0.2
2	2	5	10	400	0.2	0.2
3	3	6	20	600	0.3	0.5
4	4	8	20	800	0.3	0.5
5	5	10	20	800	0.3	0.5
6	6	12	20	1000	0.3	0.5
7	7	13	25	1000	0.3	0.5
8	8	15	25	1000	0.3	0.5
9	9	16	30	1200	0.3	0.5
10	10	18	30	1200	0.3	0.5
11	11	20	30	1200	0.3	1
12	12	25	35	1200	0.3	1
13	13	30	35	1500	0.3	1
14	14	35	35	1500	0.4	1
15	15	40	50	1500	0.4	1
16	16	50	65	1500	0.4	1

Type

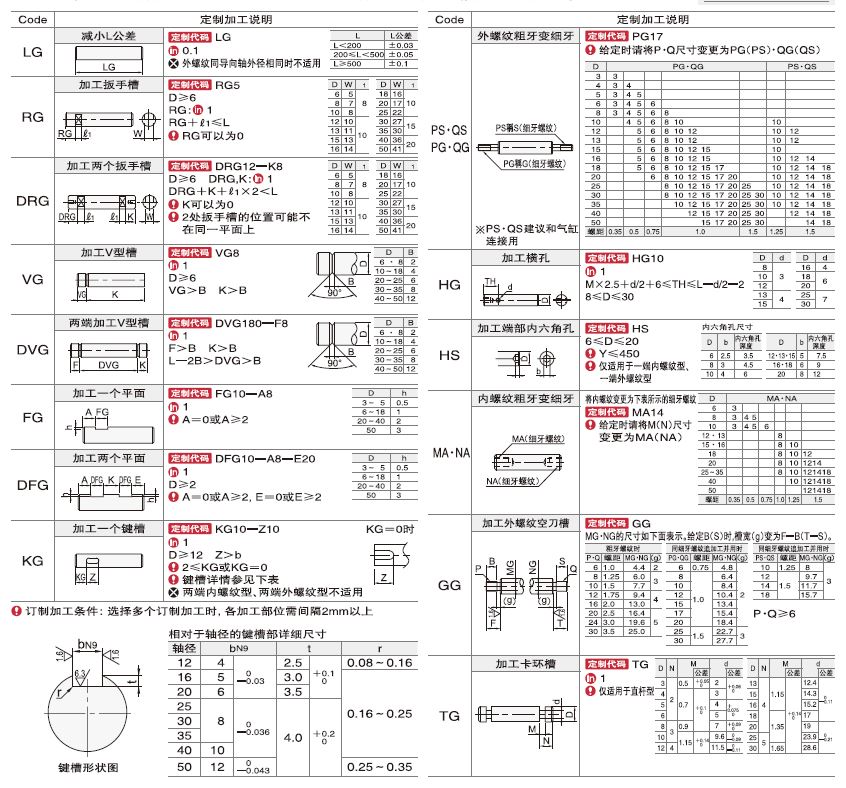

Machining Wrench Flat

None

Machining V Groove

None

Flat Machining

Machining Keyway

None

Drill Hole

None

Female thread alteration

Input RG Value

Input DRG Value

Input K Value

Input VG Value

Input DVG Value

Input F(DVG) Value

Input FG Value

Input A(FG) Value

Input DFG Value

Input A(DFG) Value

Input E Value

Input KG Value

Input Z Value

Input TH Value

L Tolerance Alteration
