Straight Linear Shaft - One End Tapped with Internal thread One End External thread - DKF/DKRF/DKAF/DKSF/DKVF/DKMF/DKNF Series

Manufacturer	ACME Precision Industry Co.,Ltd.

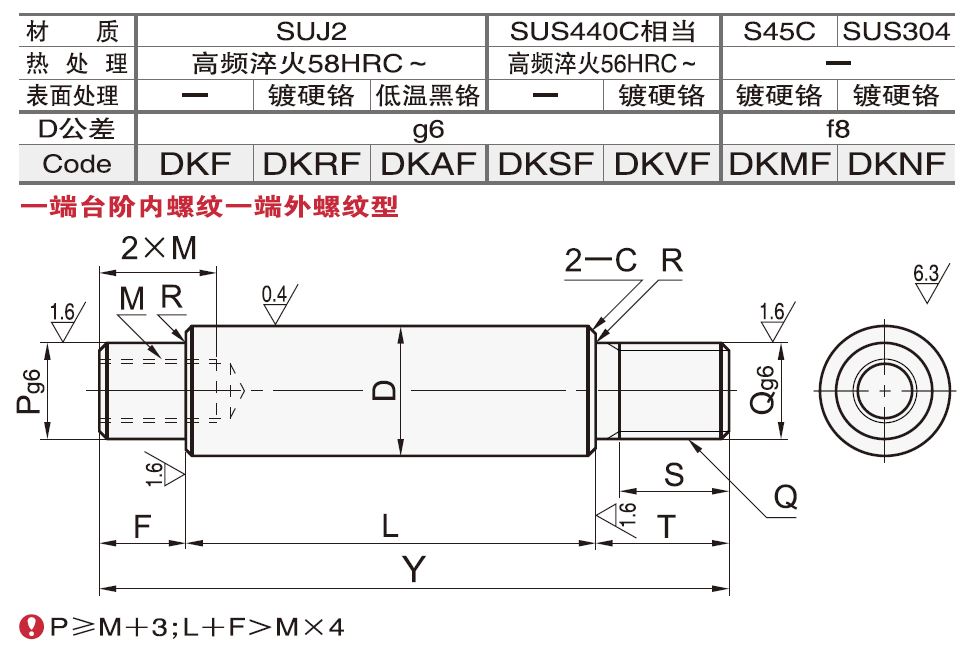

Description	Straight Linear Shaft - One End Tapped with Internal thread One End External thread DKF8-L180-P6-M3-F20-Q3-T20-S12
Part number	DKF8-L180-P6-M3-F20-Q3-T20-S12

CAD models

Request for quotation

Product selection

Index	Selector	D	Lmin	Lmax	Ymax	Rmax	Cmax
1	1	8	25	798	800	0.3	0.5
2	2	10	25	798	800	0.3	0.5
3	3	12	25	998	1000	0.3	0.5
4	4	13	25	998	1000	0.3	0.5
5	5	15	25	998	1000	0.3	0.5
6	6	16	25	1198	1200	0.3	0.5
7	7	18	25	1198	1200	0.3	0.5
8	8	20	25	1198	1200	0.3	1
9	9	25	25	1198	1200	0.3	1
10	10	30	25	1498	1500	0.3	1
11	11	35	25	1498	1500	0.5	1
12	12	40	25	1498	1500	0.5	1
13	13	50	25	1498	1500	0.5	1

Type

Machining Wrench Flat

Flat Machining

Machining Keyway

None

Thread selection (Q)

Thread selection (M)

Input RG Value

Input DRG Value

Input K Value

Input E(FG) Value

Input FG Value

Input DFG Value

Input A(DFG) Value

Input E Value

Input KG Value

Input Z Value

Input DKG Value

Input B(DKG) Value

Input KG Value

Input Z Value

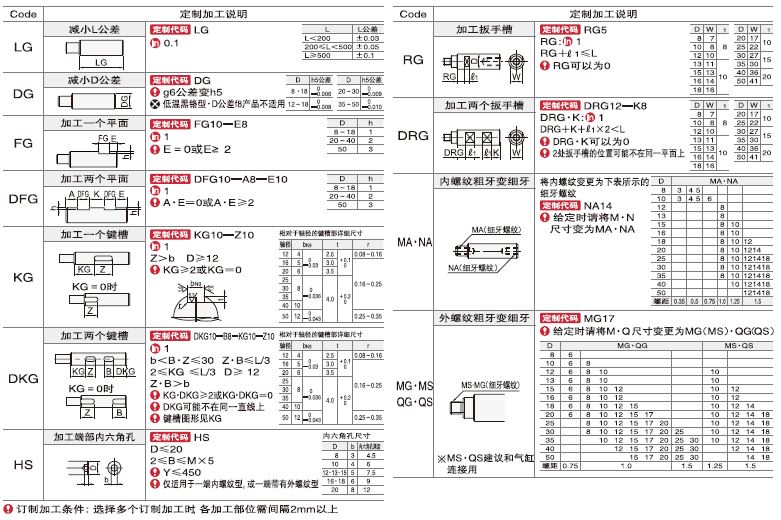

L Tolerance Alteration

D Tolerance Alteration

Documentation

Technical document

Contact the supplier
