Slitty Set Collars Set Collars RUBC/RUBCN/RUBCS/RUFC/RUFCN/RUFCS

Manufacturer	ACME Precision Industry Co.,Ltd.
Description	Slitty Set Collars Set Collars RUBC6-8
Part number	RUBC6-8

CAD models

Request for quotation

Product selection

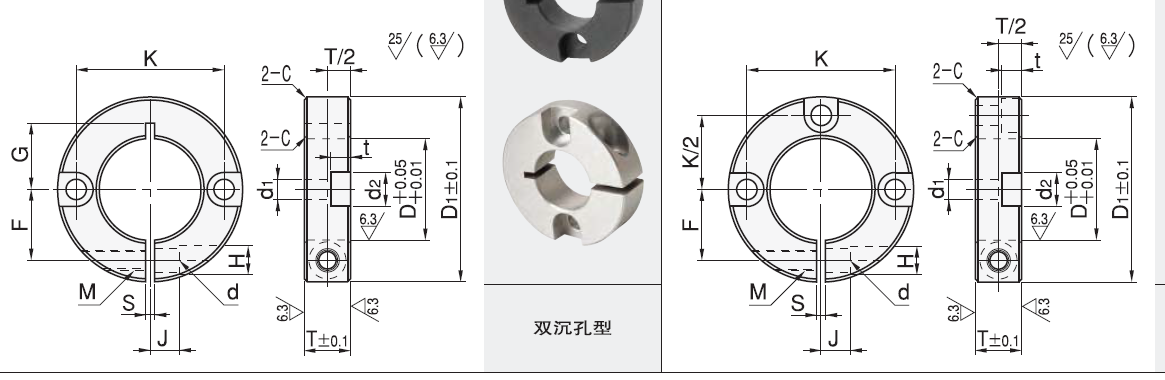

Index	Selector	D.	T	D1	M	d	H	S	F	J	G	K	d1	d2	t	C
1	1	6	8	24	M3	3.5	6	1	8	4	6～8	15	3.5	6.5	3.3	0.5
2	2	6	10	24	M4	4.5	7.5	1	8	4	6～8	15	3.5	6.5	3.3	0.5
3	3	8	8	25	M3	3.5	6	1.5	8	5	7～9	17	3.5	6.5	3.3	0.5
4	4	8	10	28	M4	4.5	7.5	1.5	9	5	8～9	18	4.5	8	4.4	0.5
5	5	10	10	33	M4	4.5	7.5	1.5	10	5	10～11	22	5.5	9.5	5.4	0.5
6	6	10	12	33	M5	5.5	9	1.5	11	5	10～11	22	5.5	9.5	5.4	0.5
7	7	10	15	36	M6	6.5	12	1.5	13	6	11～12	23	6.5	11	6.5	0.5
8	8	12	10	35	M4	4.5	7.5	1.5	11	5	10～12	24	5.5	9.5	5.4	0.5
9	9	12	12	35	M5	5.5	9	1.5	11	5	10～12	24	5.5	9.5	5.4	0.5
10	10	12	15	38	M6	6.5	12	1.5	13	6	11～13	25	6.5	11	6.5	0.5
11	11	13	10	33	M4	4.5	7.5	1.5	11	5	10～11	23	4.5	8	4.4	0.5
12	12	13	12	36	M5	5.5	9	1.5	11	5	11～13	25	5.5	9.5	5.4	0.5
13	13	13	15	36	M6	6.5	12	1.5	12	6	11～13	25	5.5	9.5	5.4	0.5
14	14	15	12	38	M5	5.5	9	1.5	13	6	11～13	27	5.5	9.5	5.4	0.5
15	15	15	15	40	M6	6.5	12	1.5	13	8	11～13	28	6.5	11	6.5	0.5
16	16	16	10	36	M5	5.5	9	1.5	12	6	11～12	26	4.5	8	4.4	0.5
17	17	16	12	38	M5	5.5	9	1.5	13	6	12～13	28	5.5	9.5	5.4	0.5
18	18	16	15	42	M6	6.5	12	1.5	13	8	13～14	29	6.5	11	6.5	0.5
19	19	20	12	42	M5	5.5	9	1.5	15	7	13～14	32	5.5	9.5	5.4	0.5
20	20	20	15	45	M6	6.5	12	1.5	15	8	14～15	33	6.5	11	6.5	0.5
21	21	20	20	45	M6	6.5	12	1.5	16	8	14～15	33	6.5	11	6.5	0.5
22	22	25	12	48	M5	5.5	9	1.5	17	7	14～16	37	5.5	9.5	5.4	0.5
23	23	25	15	50	M6	6.5	12	1.5	18	10	15～17	38	6.5	11	6.5	0.5
24	24	30	15	55	M6	6.5	12	1.5	20	10	20	43	6.5	11	6.5	1
25	25	35	15	60	M6	6.5	12	2	23	12	21	48	6.5	11	6.5	1
26	26	40	18	78	M8	9	14	2	28	13	26	60	9	14	8.6	1
27	27	50	22	88	M10	11	18	3	32	16	29	71	11	17.5	10.8	1
