Separated Set Collars RTP/RTPN/RTPS

Manufacturer	ACME Precision Industry Co.,Ltd.
Description	Separated Set Collars RTP16-10
Part number	RTP16-10

CAD models

Request for quotation

Product selection

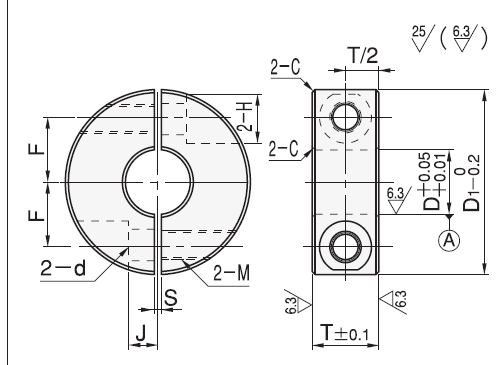

Index	Selector	D	T	D1	M	d	H	S	F	J
1	1	16	10	35	M5	5.5	9	1.5	12	6
2	2	16	12	35	M5	5.5	9	1.5	12	6
3	3	17	10	40	M5	5.5	9	1.5	14	7
4	4	17	12	40	M5	5.5	9	1.5	14	7
5	5	20	10	40	M5	5.5	9	1.5	14	7
6	6	20	12	40	M5	5.5	9	1.5	14	7
7	7	20	15	45	M6	6.5	12	1.5	15	8
8	8	25	12	45	M5	5.5	9	1.5	17	7
9	9	25	15	50	M6	6.5	12	1.5	18	10
10	10	30	15	55	M6	6.5	12	1.5	20	10
11	11	30	20	60	M8	9	14	1.5	23	10
12	12	35	15	60	M6	6.5	12	2	23	12
13	13	40	18	70	M8	9	14	2	26	13
14	14	50	22	85	M10	11	18	3	32	16
