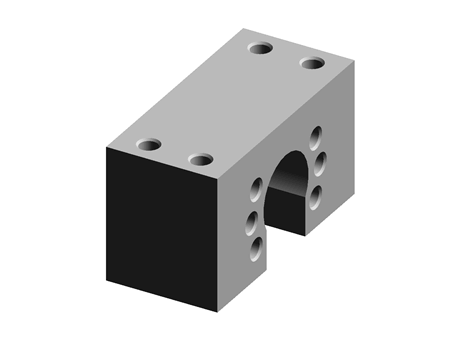

Screw Nut Housing-BRD/BRDN/BRDG/BRDA/BRDB Series

Manufacturer	ACME Precision Industry Co.,Ltd.
Description	Screw Nut Housing BRD0601
Part number	BRD0601

CAD models

Request for quotation

Product selection

Ball Screw Type

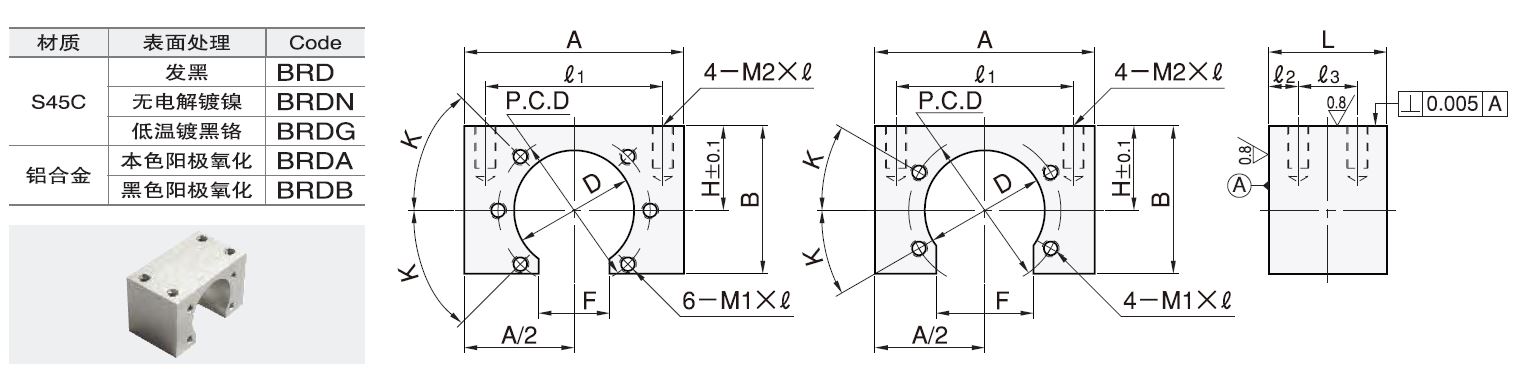

Index	Selector	d	Range	Applicable Screw	H	A	B	P.C.D.	K	M1xl	D	l1	F	L	l2	l3	M2xl
1	77	06	01	BGAP	10	32	18	16	30	M3x5	10.5	26	9	15	4	7	M3x5
2	78	08	01	BGAP	10	36	20	19	30	M3x5	12.5	30	11	15	4	7	M4x8
3	90	08	02	BGAP	11	36	20	21	30	M3x5	14.5	26	12	15	6	8	M4x8
4	91	08	02	BGCP/BGCN/BGCE	16	40	30	27	45	M3x5	20.5	26	14	28	8	12	M4x8
5	79	08	04	BGCN/BGCE	15	36	27	29	30	M3x5	22.5	26	16	28	8	12	M4x8
6	33	10	02	BGCP/BGCN/BGCE	17	43	32.5	31	45	M4x7	23.5	34	10	26	7	12	M4x8
7	34	10	04	BGCN/BGCE	20	52	34	36	30	M4x7	26.5	42	22	32	10	16	M5x10
8	35	10	10	BGCN/BGCE	17	52	35	36	30	M4x7	28.4	42	23	37	7	23	M5x10
9	36	12	02	BGCP/BGCN/BGCE	20	50	37	33	45	M4x7	25.5	40	15	28	8	12	M5x10
10	37	12	04	BGCP/BGCN/BGCE	21	50	41.5	41	45	M5x7	30.5	40	20	34	8	20	M5x10
11	38	12	05	BGCP/BGCN/BGCE	20	60	36	40	30	M4x7	30.5	50	24	36	8	20	M5x10
12	39	12	10	BGCN/BGCE	20	60	36	41	30	M5x7	30.5	50	24	40	10	20	M5x10
13	40	12	20	BGCN/BGCE	20	60	36	43	30	M5x7	32.5	50	26	40	10	20	M5x10
14	41	14	04	BGAP	17	50	31.5	35	30	M4x7	26.5	40	22	30	7	16	M5x10
15	42	15	02	BGCP/BGCN/BGCE	20	60	36	41	30	M5x7	30.5	48	24	30	10	10	M6x12
16	43	15	04	BGCP/BGCN/BGCE	20	60	36	43	30	M5x7	32.5	48	24	30	10	10	M6x12
17	44	15	05	BGCP/BGCN/BGCE	21	62	38	45	30	M5x7	34.5	50	28	36	8	20	M6x12
18	45	15	10	BGCN/BGCE	21	62	38	45	30	M5x7	34.5	50	28	36	8	20	M6x12
19	46	15	15	BGCN/BGCE	21	62	38	45	30	M5x7	34.5	52	28	50	10	30	M6x12
20	47	15	20	BGCN/BGCE	21	62	38	45	30	M5x7	34.5	52	28	50	10	30	M6x12
21	48	16	16	BGCN/BGCE	21	62	38	45	30	M5x7	34.5	52	28	50	10	30	M6x12
22	49	20	05	BGCP/BGCN/BGCE	25	76	45	53	30	M6x10	40.5	64	34	55	10	35	M8x16
23	50	20	10	BGCN/BGCE	28	82	51	59	30	M6x10	46.5	70	40	55	10	35	M8x16
24	51	20	20	BGCN/BGCE	28	82	51	59	30	M6x10	46.5	70	40	55	10	35	M8x16
25	52	25	05	BGCN/BGCE	30	76	58.5	60	45	M6x10	47.5	64	32	40	10	20	M8x16
26	53	25	05	BGP/BGN	25	64	50	51	45	M6x10	40.5	50	28	30	8	14	M8x16
27	54	25	10	BGP/BGN	26	66	52	54	45	M6x10	40.5	52	28	50	10	30	M8x16
28	55	25	15	BGP/BGN	26	64	50	51	45	M6x10	40.5	48	24	60	17	26	M10x20
29	56	25	20	BGP/BGN	26	64	50	51	45	M6x10	40.5	48	24	60	17	26	M10x20
30	57	25	25	BGP/BGN	26	64	50	51	45	M6x12	40.5	48	24	60	17	26	M10x20
31	58	25	10	BGCN/BGCE	35	94	61	68	30	M8x12	52.5	80	44	55	10	35	M10x20
32	59	25	20	BGCN/BGCE	35	94	61	68	30	M8x12	52.5	80	44	55	10	35	M10x20
33	60	25	25	BGCN/BGCE	35	94	62	70	30	M8x12	54.5	80	44	55	10	35	M10x20
34	61	28	05	BGP/BGN	26	70	50	51	45	M6x10	43.5	54	24	40	10	20	M10x20
35	62	28	10	BGP/BGN	35	90	70	72	45	M8x12	54.5	70	34	60	10	40	M10x20
36	63	32	05	BGP/BGN	35	90	70	72	45	M8x12	50.5	70	34	40	10	20	M10x20
37	64	32	08	BGP/BGN	35	90	70	72	45	M8x12	53.5	70	34	40	10	20	M10x20
38	65	32	10	BGP/BGN	35	90	70	72	45	M8x12	53.5	70	34	40	10	20	M10x20
39	66	32	12	BGP/BGN	35	90	70	72	45	M8x12	53.5	70	34	40	10	20	M10x20
40	67	32	20	BGP/BGN	35	90	70	72	45	M8x12	53.5	70	34	40	10	20	M10x20
41	68	32	15	BGP/BGN	35	90	70	72	45	M8x12	53.5	70	34	100	20	60	M10x20
42	69	36	10	BGP/BGN	35	92	70	76	45	M8x12	61.5	74	36	70	15	40	M10x20
43	70	36	12	BGP/BGN	35	92	70	76	45	M8x12	61.5	74	36	70	15	40	M10x20
44	71	36	16	BGP/BGN	35	92	70	76	45	M8x12	61.5	74	36	70	15	40	M10x20
45	72	38	10	BGP/BGN	35	94	70	78	45	M8x12	63.5	78	36	70	15	40	M10x20
46	73	38	12	BGP/BGN	35	94	70	78	45	M8x12	63.5	78	36	70	15	40	M10x20
47	74	38	16	BGP/BGN	35	94	70	78	45	M8x12	63.5	78	36	70	15	40	M10x20
48	75	40	05	BGP/BGN	35	92	70	76	45	M8x12	58.5	74	36	60	15	30	M10x20
49	76	40	08	BGP/BGN	35	92	70	76	45	M8x12	60.5	74	36	60	15	30	M10x20
50	80	40	10	BGP/BGN	38	96	75	8	45	M8x12	65.5	76	38	70	15	40	M10x20
51	81	40	12	BGP/BGN	38	96	75	80	45	M8x12	65.5	76	38	70	15	40	M10x20
52	82	40	15	BGP/BGN	38	96	75	80	45	M8x12	65.5	76	38	90	20	50	M10x20
53	83	40	20	BGP/BGN	38	96	75	83	45	M10x20	65.5	74	38	100	25	50	M12x25
54	84	45	10	BGP/BGN	45	110	85	88	45	M10x20	70.5	86	44	60	15	30	M12x25
55	85	45	12	BGP/BGN	45	110	85	88	45	M10x20	70.5	86	44	80	25	30	M12x25
56	86	45	16	BGP/BGN	45	110	85	88	45	M10x20	70.5	86	44	80	25	30	M12x25
57	87	50	08	BGP/BGN	45	110	85	88	45	M10x20	70.5	86	44	60	15	30	M12x25
58	88	50	10	BGP/BGN	48	120	95	100	45	M10x20	75.5	96	46	60	15	30	M12x25
59	89	50	12	BGP/BGN	48	120	95	100	45	M10x20	75.5	96	46	80	20	30	M12x25
60	1	50	16	BGP/BGN	48	120	95	100	45	M10x20	75.5	96	46	80	20	30	M12x25

Material

Treatment

Documentation

Technical Documents
