Rolled Ball Screw BGREE/BGRRR Series

Manufacturer	ACME Precision Industry Co.,Ltd.

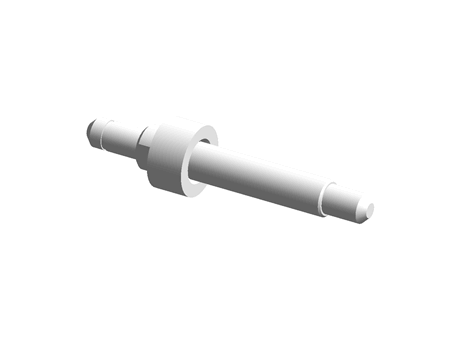

Description	Rolled Ball Screw BGREE0601-41
Part number	BGREE0601-41

CAD models

Request for quotation

Product selection

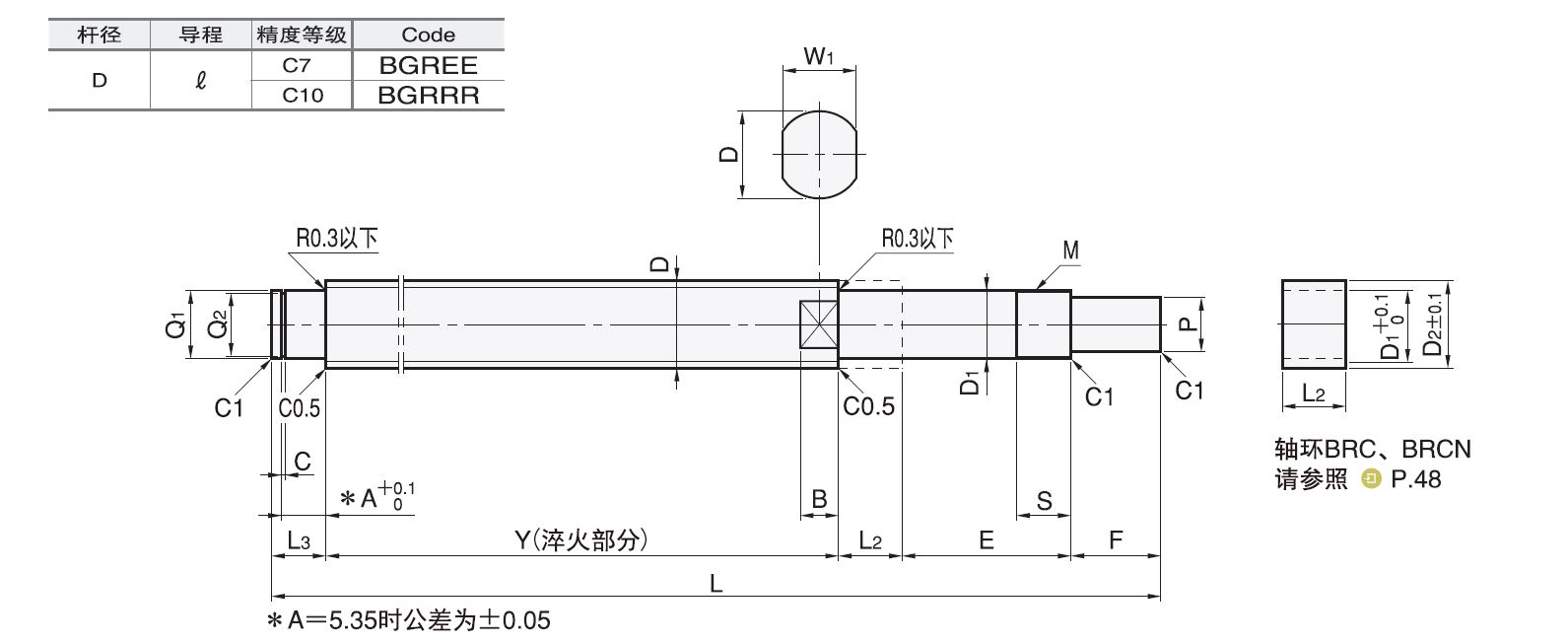

Index	Selector	Rod Diameter D	Lmax	Ymax	D1	D2	P	F	E	S	L2	B	W1	M	Q1	Q2	L3	A	C
1	1	06	335	297	5	9.5	4	6	19	6.5	5	3	5	M5x0.5	4	3.7	8	5.35	0.5
2	2	08	430	384	6	9.5	4.5	7.5	30	7	5	3	7	M6x0.75	6	5.7	9	6.8	0.8
3	3	10	470	428	8	11.5	6	10	27	9	5.5	4	8	M8x1.0	6	5.37	9	6.8	0.8
4	4	12	470	415	10	14.5	8	15	30	10	5.5	5	10	M10x1.0	8	7.6	10	7.9	0.9
5	5	14	1000	988	12	15.5	10	15	30	10	5.5	10	12	M12x1.0	10	9.6	12	9.15	1.15
6	6	15	4400	4400	12	15.5	10	15	30	10	5.5	10	12	M12x1.0	10	9.6	12	9.15	1.15
7	7	16	1500	1500	12	15.5	10	15	30	10	5.5	10	12	M12x1.0	10	9.6	12	9.15	1.15
8	8	20	4400	4330	15	19.5	12	20	40	15	10	10	17	M15x1.0	15	14.3	12	10.15	1.15
9	9	25	4400	4291	20	25.5	15	27	53	16	11	10	22	M20x1.0	20	19	18	15.35	1.35
10	10	28	4400	4385	20	29.5	15	27	53	16	15	10	22	M20x1.0	20	19	18	15.35	1.35
11	11	32	5700	5570	25	32.5	15	33	62	20	15	14	27	M25x1.5	25	23.9	20	16.35	1.35
12	13	40	5400	5254	30	48.5	25	38	72	25	15	15	32	M30x1.5	30	28.6	21	17.75	1.75
13	12	50	5200	5029	40	60	35	50	98	35	20	19	41	M40x1.5	40	38	23	19.95	1.95
