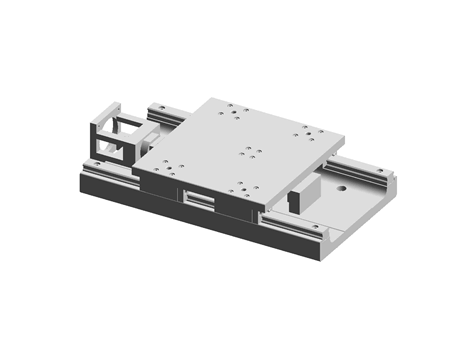

Precision/General Linear Stage-single axis & 25 series- XP25/XN25

Manufacturer	ACME Precision Industry Co.,Ltd.
Description	Precision/General Linear Stage-single axis & 15 series- XP25-20-Mitsubishi-HC-KFS73
Part number	XP25-20-Mitsubishi-HC-KFS73

CAD models

Request for quotation

Product selection

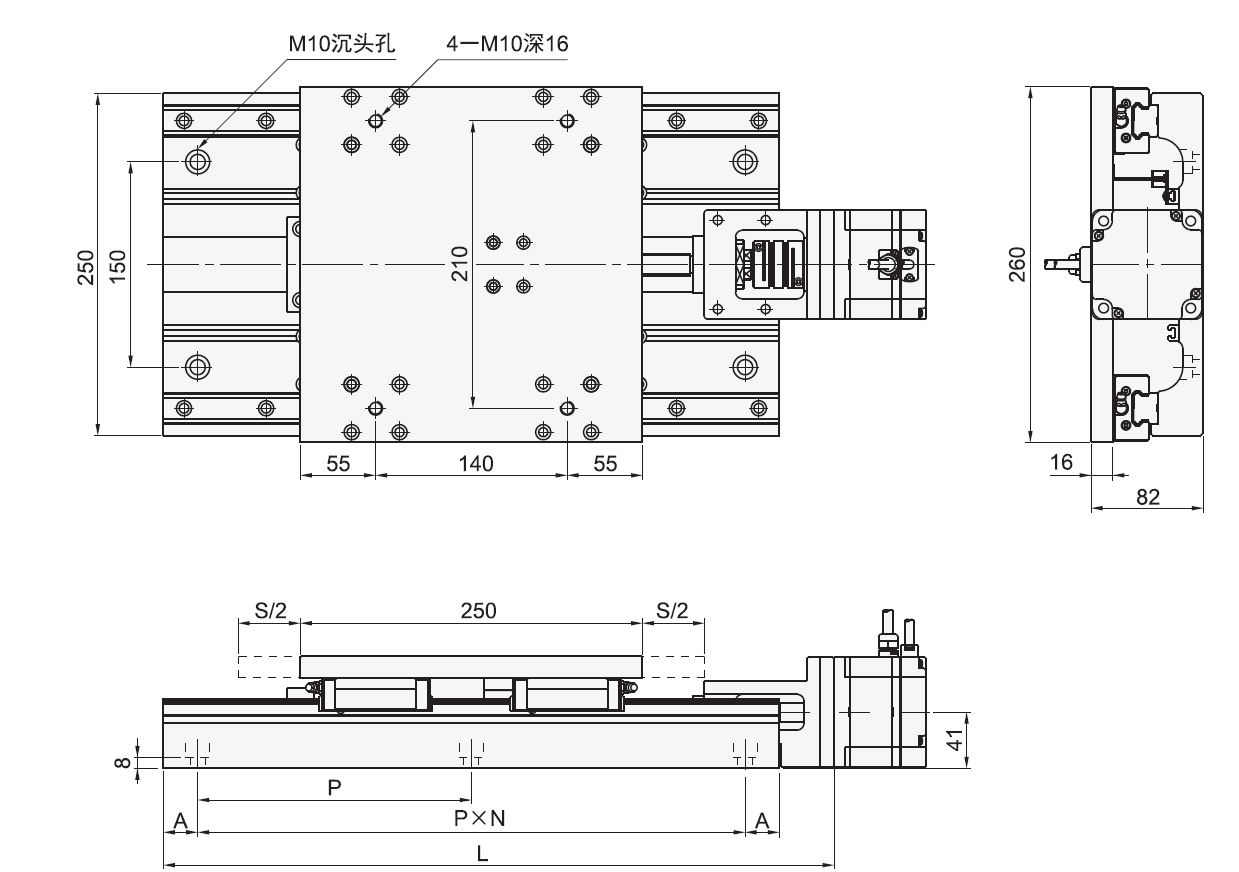

Index	Selector	No.	Stroke S	Straightness(Precisional)	Positional Accuracy(Precisional)	Round Trip Precision(Precisional)	Straightness(General)	Positional Accuracy(General)	Round Trip Precision(General)	Resistance to Load	Precision of Linear Guide rail	Screw Diameter	Screw Lead	Screw Precision	A	P x N	L	Weight
1	1	20	±100	0.015	0.025	±0.003	0.045	0.05	±0.006	70	Precision P , General H	16	5	Precisonal C5(Grind),General R(Rolling)	75	150 x 2	490	12.4
2	2	25	±125	0.015	0.025	±0.003	0.045	0.05	±0.006	70	Precision P , General H	16	5	Precisonal C5(Grind),General R(Rolling)	25	150 x 3	540	13.1
3	3	30	±150	0.025	0.035	±0.003	0.075	0.07	±0.006	70	Precision P , General H	16	5	Precisonal C5(Grind),General R(Rolling)	50	150 x 3	590	14.5
4	4	40	±200	0.025	0.035	±0.003	0.075	0.07	±0.006	70	Precision P , General H	16	5	Precisonal C5(Grind),General R(Rolling)	25	150 x 4	690	16.4
5	5	50	±250	0.035	0.02	±0.003	0.105	0.1	±0.006	70	Precision P , General H	16	5	Precisonal C5(Grind),General R(Rolling)	75	150 x 4	790	18.2

Type Selection

Motor Brand

Code of Motor

Documentation

Technical Document

Contact the supplier

ACME Precision Industry Co.,Ltd.

ACME provide high quality standard parts, precision machining parts and linear actuators for automation industry. The products include linear motion, linear guide, transmission parts, conveyor system, supporting parts, operation parts, aluminum frame, fasteners and so on.
