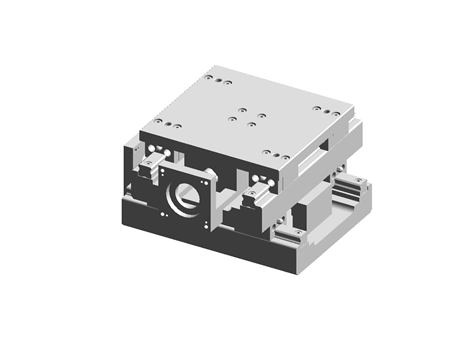

Precision/General Linear Stage-dual axis & 15 series- XYP15/XYN15

Manufacturer	ACME Precision Industry Co.,Ltd.
Description	Precision/General Linear Stage-single axis & 15 series- XYP15-0505-Mitsubishi-HC-KFS23
Part number	XYP15-0505-Mitsubishi-HC-KFS23

CAD models

Request for quotation

Product selection

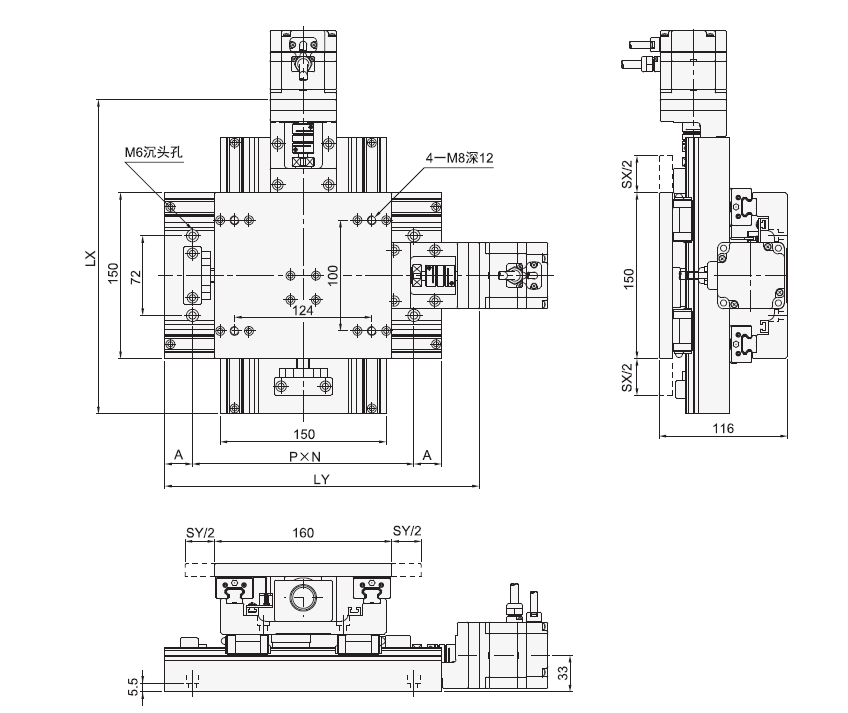

Index	Selector	No.	Straightness(Precisional)	Positional Accuracy(Precisional)	Round Trip Precision(Precisional)	Straightness(General)	Positional Accuracy(General)	Round Trip Precision(General)	Resistance to Load	Precision of Linear Guide rail	Screw Diameter	Screw Lead	Screw Precision	A	P x N	Weight
1	1	0505	0.005	0.025	±0.002	0015	0.05	±0.006	30	Precision P , General H	12	5	Precisonal C5(Grind),General R(Rolling)	37.5	125 x 1	6.7
2	2	0510	0.008	0.03	±0.002	0.024	0.06	±0.006	30	Precision P , General H	12	5	Precisonal C5(Grind),General R(Rolling)	62.5	125 x 1	7.1
3	3	0515	0.012	0.04	±0.002	0.036	0.08	±0.006	30	Precision P , General H	12	5	Precisonal C5(Grind),General R(Rolling)	25	125 x 2	7.6
4	4	1010	0.015	0.05	±0.002	0.045	0.11	±0.006	30	Precision P , General H	12	5	Precisonal C5(Grind),General R(Rolling)	62.5	125 x 1	7.6
5	5	1015	0.018	0.08	±0.002	0.054	0.15	±0.006	30	Precision P , General H	12	5	Precisonal C5(Grind),General R(Rolling)	25	125 x 2	8
6	6	1515	0.02	0.1	±0.002	0.06	0.2	±0.006	30	Precision P , General H	12	5	Precisonal C5(Grind),General R(Rolling)	25	125 x 2	8.5

Type Selection

Motor Brand

Code of Motor

Documentation

Technical Document
