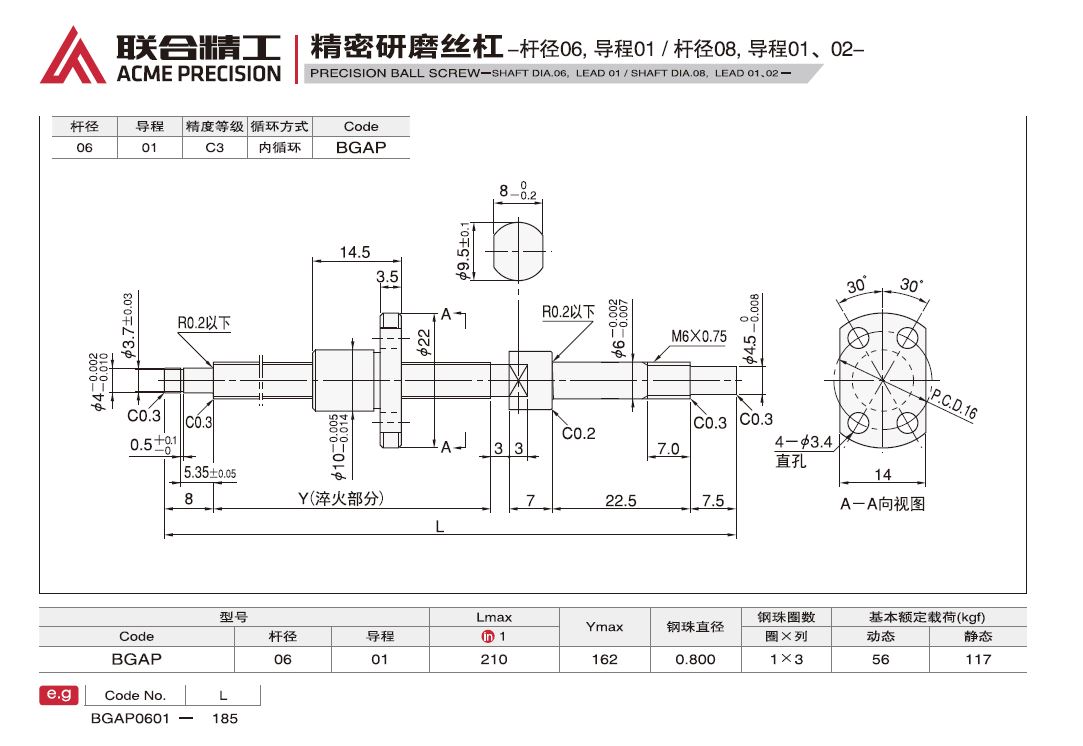

Precision Ball Screw -Shaft DIA.06 Lead.01 Shaft DIA.08 Lead.01 02-

Manufacturer	ACME Precision Industry Co.,Ltd.
Description	Precision Ball Screw -Shaft DIA.06 Lead.01 Shaft DIA.08 Lead.01 02- BGAP0601-63
Part number	BGAP0601-63

CAD models

Request for quotation

Product selection

Index	Selector	Code	Diameter	Lead	Lmax	Ymax	dii	Num	KGF	KGFO	D	L0	D1	W	P.C.D
1	1	BGAP	6	1	210	162	0.8	1X3	56	117	0	0	0	0	16
2	2	BGAP	8	1	260	203	0.8	1X3	66	163	12	15	25	16	19
3	3	BGAP	8	2	260	203	1.2	1X3	137	235	14	21	27	17	21

Documentation

Technical Document

Contact the supplier

ACME Precision Industry Co.,Ltd.

ACME provide high quality standard parts, precision machining parts and linear actuators for automation industry. The products include linear motion, linear guide, transmission parts, conveyor system, supporting parts, operation parts, aluminum frame, fasteners and so on.
