Miniature Linear Guide Way LSN/LSSM

Manufacturer	ACME Precision Industry Co.,Ltd.
Description	Miniature Linear Guide Way LSN194
Part number	LSN194

CAD models

Request for quotation

Product selection

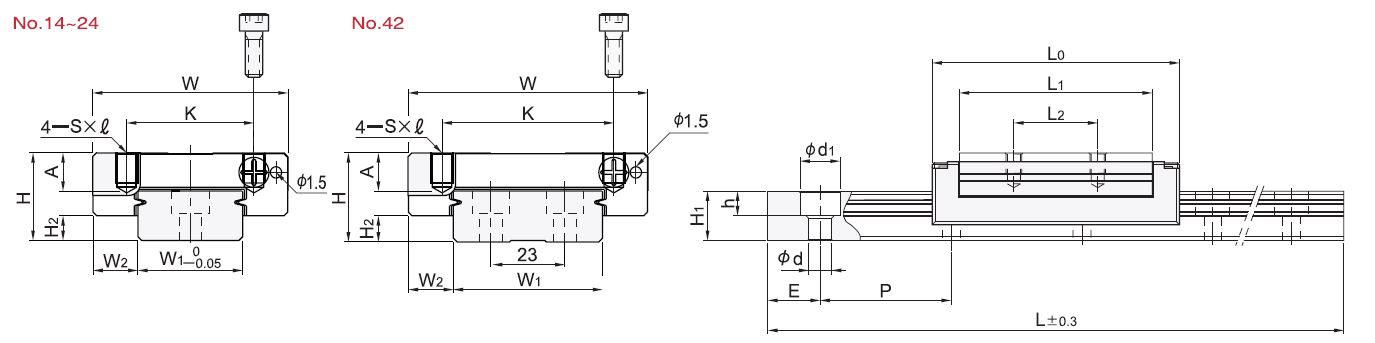

Index	Selector	Code	No.	L	H	W	L0	W2	H2	K	L1	L2	Sxl	A	W1	H1	P	E	d1xhxd
1	1	LSN/LSSN	14	40～600	9	25	30.8	5.5	2	19	20.6	10	M3x3	3.9	14	5.2	30	10	6x3.2x3.5
2	2	LSM/LSSM	14	50～600	9	25	40.5	5.5	2	19	30.3	19	M3x3	3.9	14	5.2	30	10	6x3.2x3.5
3	3	LSN/LSSN	18	50～1000	12	30	38.7	6	3.7	21	27.1	12	M3x3	5	18	7	30	10	6x4.5x3.5
4	4	LSM/LSSM	18	55～1000	12	30	50.7	6	3.7	23	39.1	24	M3x3	5	18	7	30	10	6x4.5x3.5
5	5	LSN/LSSN	24	55～1000	14	40	44.5	8	4	28	31	15	M3x4	6	24	8.5	40	15	8x4.5x4.5
6	6	LSM/LSSM	24	70～1000	14	40	60	8	4	28	46.5	28	M3x4	6	24	8.5	40	15	8x4.5x4.5
7	7	LSN/LSSN	42	65～1000	16	60	55.5	9	4	45	40.3	20	M4x4.5	7	42	9.5	40	15	8x4.5x4.5
8	8	LSM/LSSM	42	80～1000	16	60	74.5	9	4	45	59.3	35	M4x4.5	7	42	9.5	40	15	8x4.5x4.5

Material

Preload Grade

Accuary

Number(s) of Slider

Low Temperature plating black chrome

End

Documentation

Technical Document
