Linear Shaft Supporter-Standard Type Long Type-GC/GCL

Manufacturer	ACME Precision Industry Co.,Ltd.
Description	Linear Shaft Supporter-Standard Type Long Type GC8
Part number	GC8

CAD models

Request for quotation

Product selection

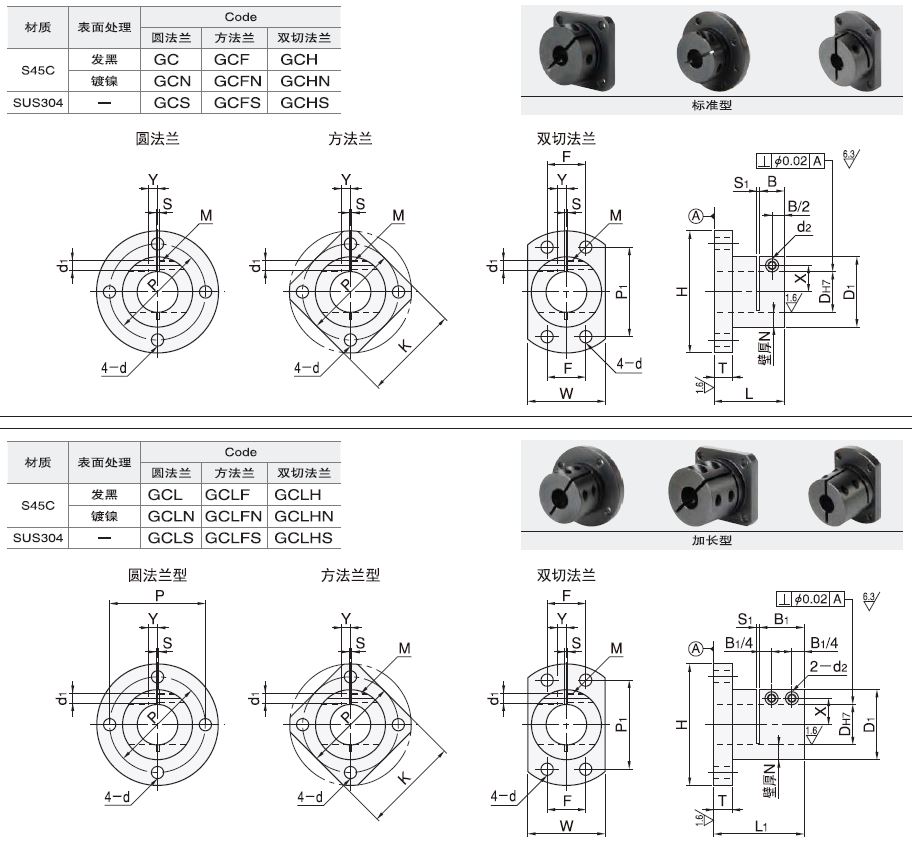

Index	Selector	D	N	L	L1	D1	H	T	B	B1	P	K	W	P1	F	d	M	S	S1	X	Y	d1	d2	Bolt
1	1	8	8.5	18	0	25	39	5	10	0	32	30	27	25	20	3.5	M4	1.5	1.5	7.5	3.5	4.5	7.5	M4X10
2	2	10	10	20	0	30	49	5	10	0	40	38	32	33	23	4.5	M5	1.5	1.5	10	3	5.5	9	M5X10
3	3	12	10	22	33	32	52	6	10	20	42	40	34	35	25	4.5	M5	1.5	1.5	11	4	5.5	9	M5X12
4	4	13	9.5	24	0	32	52	6	12	0	42	40	34	35	25	4.5	M5	1.5	1.5	11	4	5.5	9	M5X12
5	5	15	10	27	0	35	56	6	12	0	46	44	37	37	27	5.5	M5	1.5	1.5	12	5	5.5	9	M5X12
6	6	16	9.5	30	45	35	56	6	12	24	46	44	37	37	27	5.5	M5	1.5	1.5	12	5	5.5	9	M5X12
7	7	20	10	32	48	40	64	8	12	24	52	50	42	43	30	6.5	M5	1.5	2	14	6	5.5	9	M5X16
8	8	25	10	38	57	45	69	8	15	30	57	54	47	46	34	6.5	M5	1.5	2	17	6	5.5	9	M5X16
9	9	30	12.5	40	60	55	79	10	15	30	67	60	57	50	45	6.5	M6	1.5	2	20	10	6.5	12	M6X20
10	10	35	12.5	48	72	60	94	10	15	30	77	71	66	58	50	9	M6	1.5	2	23	12	6.5	12	M6X20
11	11	40	15	55	82.5	70	104	12	18	36	87	81	76	67	55	9	M8	1.5	2	26	13	9	14	M8X26
12	12	50	17.5	65	97.5	85	119	12	22	44	102	94	91	82	60	9	M10	1.5	2	32	16	11	18	M10X32

Flange

Material and Treatment

Type

Standard Type

Machining Mounting Hole

None

Machining Locating Hole

None

Change the Mounting Hole
