Linear Shaft Supporter-Separated Type-GD

Manufacturer	ACME Precision Industry Co.,Ltd.
Description	Linear Shaft Supporter-Separated Type GD8
Part number	GD8

CAD models

Request for quotation

Product selection

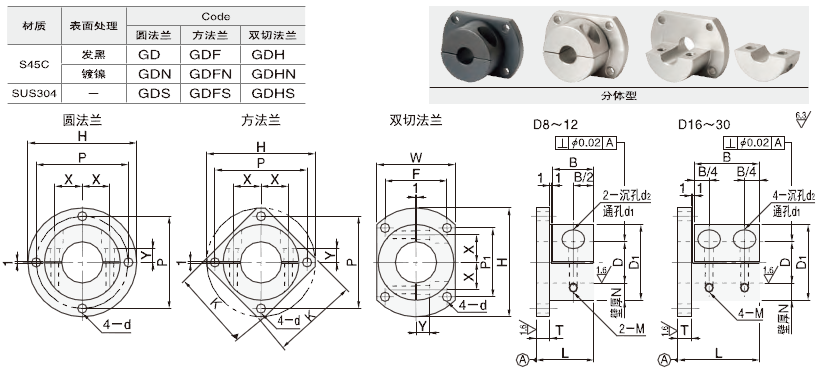

Index	Selector	D	N	L	D1	H	T	B	P	K	W	P1	F	d	X	Y	d1	d2	M	Bolt
1	1	8	8.5	19	25	39	5	12	32	30	27	25	20	3.5	7.5	3.5	4.5	7.5	M4	M4X10
2	2	10	10	21	30	49	5	14	40	38	32	33	23	4.5	10	3	5.5	9	M5	M5X10
3	3	12	10	23	32	52	6	15	42	40	34	35	25	4.5	11	4	5.5	9	M5	M5X12
4	4	16	9.5	32	35	56	6	24	46	44	37	37	27	5.5	12	5	5.5	9	M5	M5X12
5	5	20	10	34	40	64	8	24	52	50	42	43	30	6.5	14	6	5.5	9	M5	M5X16
6	6	25	10	40	45	69	8	30	57	54	47	46	34	6.5	17	6	5.5	9	M5	M5X16
7	7	30	12.5	42	55	79	10	30	67	60	57	50	45	6.5	20	10	6.5	12	M6	M6X20
