Flexible-Single Disk Coupling-Low Inertia Moment-CPC

Manufacturer	ACME Precision Industry Co.,Ltd.
Description	Flexible-Single Disk Coupling-Low Inertia Moment- CPC34-5-5
Part number	CPC34-5-5

CAD models

Request for quotation

Product selection

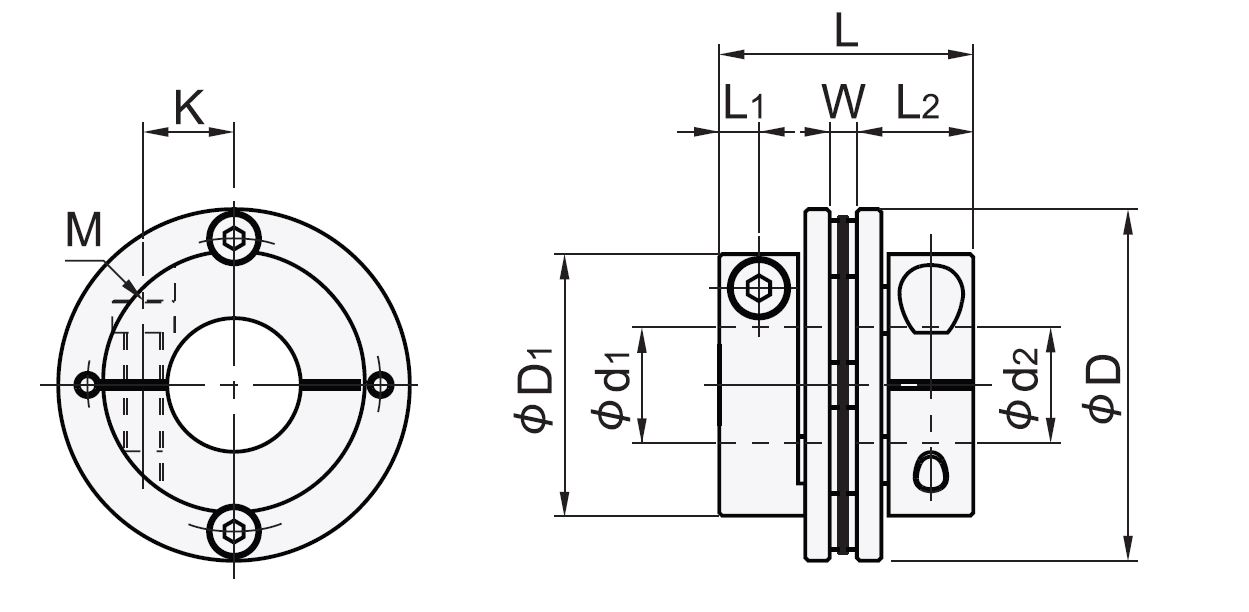

Index	Selector	D	d1/d2-min	d1/d2-max	D1	L	L1	L2	W	K	M	Lockng Torque(N·m)	Rated Torque Standard	Rated Torque Max	Max Speed	Inertance Moment	Static Torque Rigidity	Radial Deviation	Angular Deviation	Axial Deviation	Weight(g)
1	1	34	5	10	21.6	27.35	4	12	3.35	8	M3	1.5	4	8	10000	4.00x10^(-6)	2000	0.02	±1°	±0.20	30
2	2	39	6	12	24.6	34.35	5	15	4.35	8.5	M4	3.4	6	12	10000	1.18x10^(-5)	4500	0.02	±1°	±0.25	55
3	3	44	8	16	29.6	34.6	5	15	4.6	11	M4	3.4	10	20	10000	1.65x10^(-5)	52000	0.02	±1°	±0.30	68
4	4	56	10	20	38	45.25	6.6	20	5.25	14.5	M5	7	25	50	10000	5.50x10^(-5)	11000	0.02	±1°	±0.40	147
5	5	68	12	25	46	53.8	7.6	24	5.8	17.5	M6	14	60	120	10000	1.45x10^(-4)	19000	0.02	±1°	±0.45	262
6	6	82	14	30	56	68	9.3	30	8	20	M8	30	100	200	10000	4.79x10^(-4)	22000	0.02	±1°	±0.55	470
