Flexible Coupling-Stop Screw Type-CPR

Manufacturer	ACME Precision Industry Co.,Ltd.
Description	Flexible Coupling-Stop Screw Type- CPR15-3-3
Part number	CPR15-3-3

CAD models

Request for quotation

Product selection

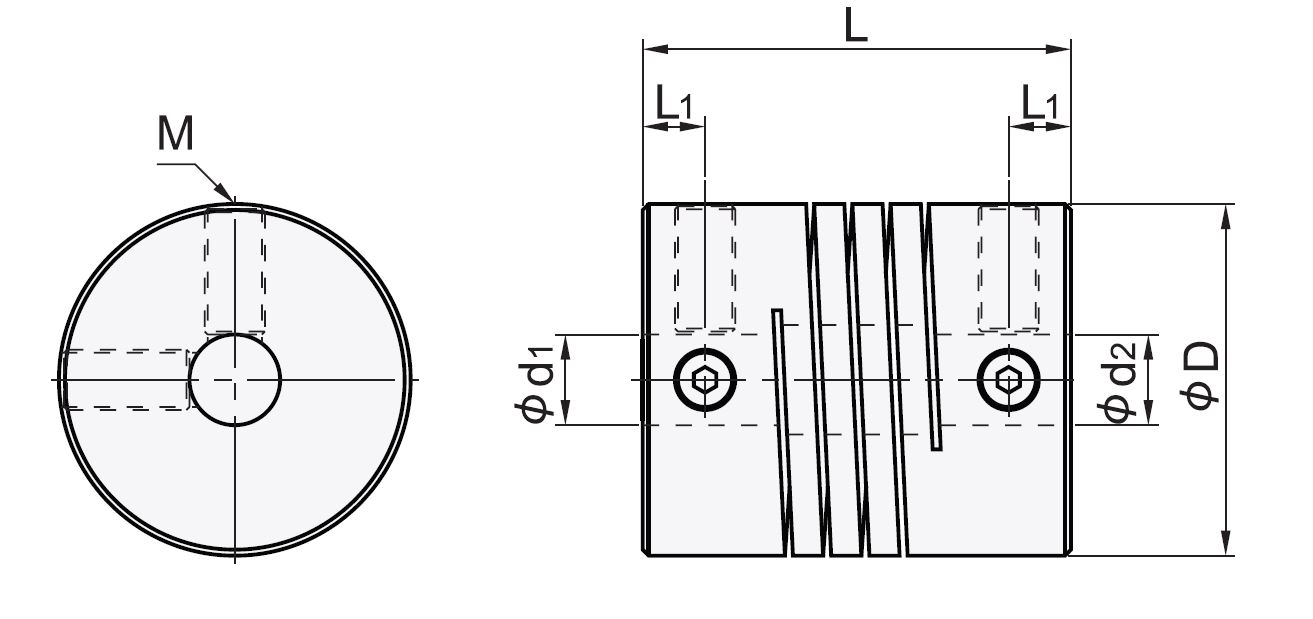

Index	Selector	Type	No.	d1/d2-min	d1/d2-max	D	L	L1	M	Lockng Torque(N·m)	Rated Torque Standard	Rated Torque Max	Max Speed	Inertance Moment	Static Torque Rigidity	Radial Deviation	Angular Deviation	Axial Deviation	Weight(g)
1	1	Standard Type CPR	15	3	6	15.5	21	2.6	M3	0.7	0.3	0.6	25000	3.00x10^(-7)	35	0.15	3	±0.15	9
2	8	Standard Type CPR	17	3	6.35	17.5	23	3.1	M3	0.7	0.5	1	25000	6.10x10^(-7)	65	0.15	3	±0.15	12
3	2	Standard Type CPR	19	4	8	19.1	19.1	2.55	M3	0.7	0.8	1.6	25000	7.02x10^(-7)	110	0.15	3	±0.15	13
4	3	Standard Type CPR	25	6	12	25.4	25.4	3.55	M4	1.7	1.8	3.6	25000	2.87x10^(-6)	170	0.15	3	±0.15	30
5	4	Standard Type CPR	28	6	14	28.6	28.6	3.6	M5	4	2.7	5.4	25000	5.16x10^(-6)	260	0.15	3	±0.15	37
6	5	Standard Type CPR	38	8	16	38.1	38.1	4.15	M5	4	6.3	12.6	25000	2.20x10^(-5)	330	0.15	3	±0.15	82
7	6	Standard Type CPR	50	10	20	50.8	50.8	5.25	M6	7	19.5	39	25000	9.38x10^(-5)	560	0.15	3	±0.15	180
8	7	Long Type CPRL	15	3	6	15.5	23	3.1	M3	0.7	0.3	0.6	25000	3.20x10^(-7)	35	0.15	3	±0.15	10

Machining Left Keyway

None

Machining Right Keyway

None

Documentation

Technical Documents
