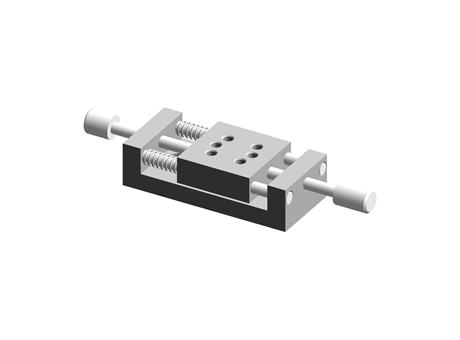

Economic Stages-Screw Thrust Type X Axis XMEC Series

Manufacturer	ACME Precision Industry Co.,Ltd.
Description	Economic Stages-Screw Thrust Type X Axis XMEC20
Part number	XMEC20

CAD models

Request for quotation

Product selection

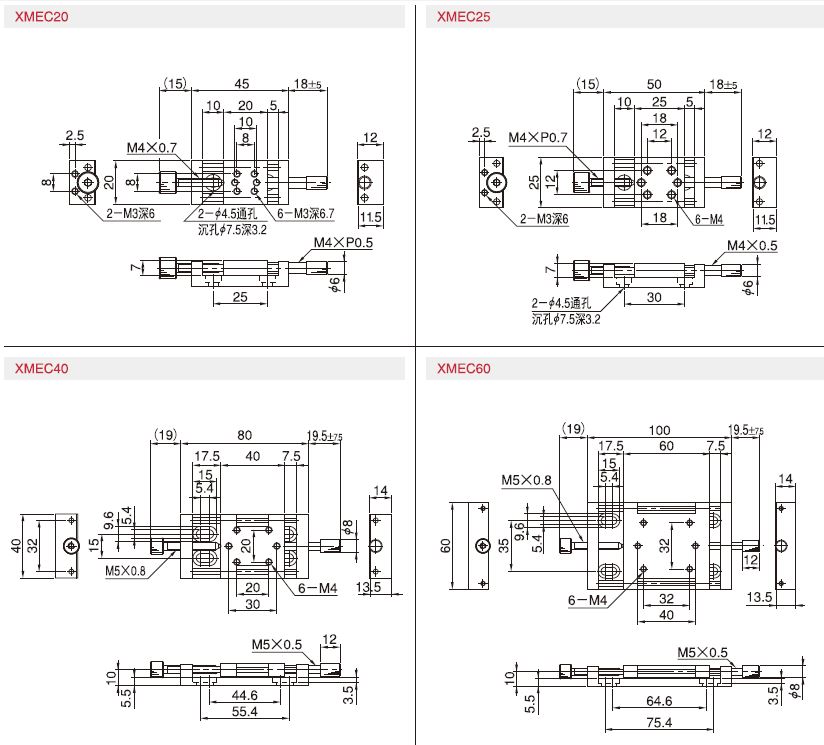

Index	Selector	Code	No.	Stage Surface	Travel Distance	Least Reading	Travel per Knob Rotation	Load Horizontal	Load Vertical	Weight
1	1	XMEC	20	20X20	±5	0.5	0.5	0.14	0.2	0.038
2	2	XMEC	25	25X25	±5	0.5	0.5	0.14	0.2	0.055
3	3	XMEC	40	40X40	±7.5	0.5	0.5	1.05	1.5	0.104
4	4	XMEC	60	60X60	±7.5	0.5	0.5	1.05	1.5	0.193

Documentation

Technical document
