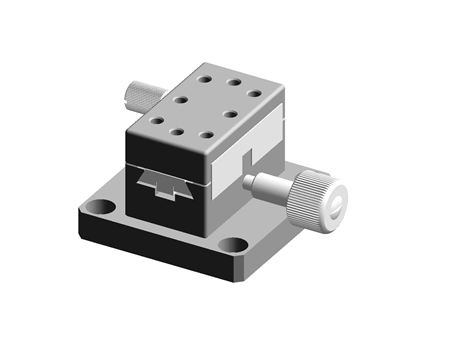

Dovetail Stages-Rack Type & X Axis-XMG Series

Manufacturer	ACME Precision Industry Co.,Ltd.
Description	Dovetail Stages-Rack Type & X Axis- XMG40
Part number	XMG40

CAD models

Request for quotation

Product selection

Index	Selector	No.	Size of stage	Trip	Minimum feed reading	Trip of knob's spining a circle	Straightness	Load	Weight
1	1	40	24.8x42	±12	0.1	18	0.03	3	0.17
2	2	60	40x60	±21	0.1	18	0.03	3	0.29
3	3	90	40x90	±35	0.1	18	0.03	4	0.40
4	4	140	40x140	±60	0.1	18	0.03	4	0.56

Documentation

Technical Documents

Contact the supplier

ACME Precision Industry Co.,Ltd.

ACME provide high quality standard parts, precision machining parts and linear actuators for automation industry. The products include linear motion, linear guide, transmission parts, conveyor system, supporting parts, operation parts, aluminum frame, fasteners and so on.
