Dovetail Stages-Economic Type & Z Axis-ZMGE Series

Manufacturer	ACME Precision Industry Co.,Ltd.

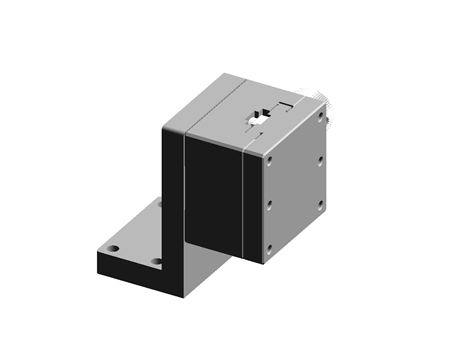

Description	Dovetail Stages-Economic Type & Z Axis- ZMGE25
Part number	ZMGE25

CAD models

Request for quotation

Product selection

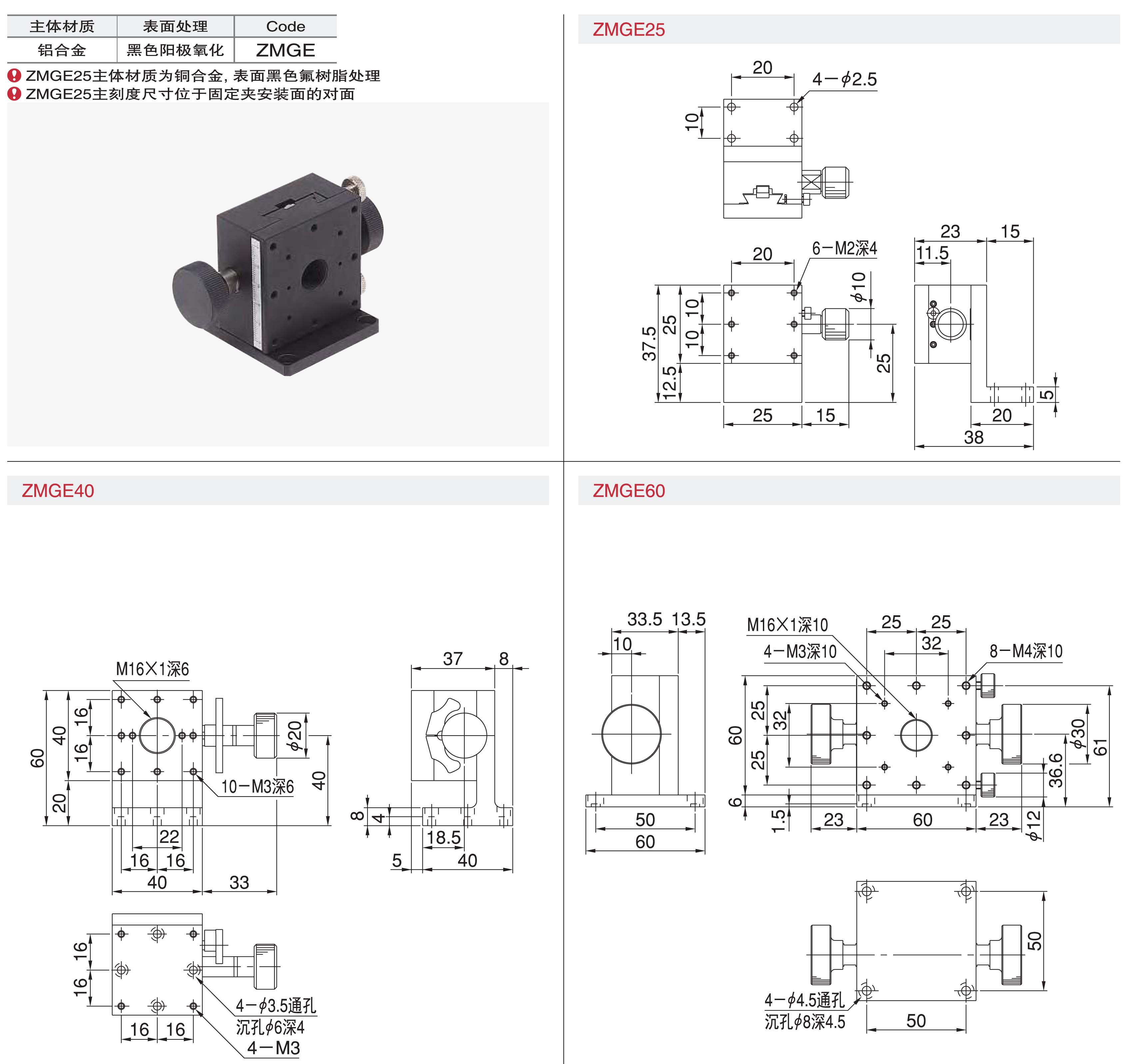

Index	Selector	No.	Size of stage	Trip	Minimum feed reading	Trip of knob's spining a circle	Straightness	Load	Weight
1	1	25	25x25	±5	0.1	17	0.02	0.7	0.11
2	2	40	40x40	±10	0.1	20	0.02	1.5	0.23
3	3	60	60x60	±20	0.1	18	0.03	2.0	0.60

Documentation

Technical Documents

Contact the supplier

ACME Precision Industry Co.,Ltd.

ACME provide high quality standard parts, precision machining parts and linear actuators for automation industry. The products include linear motion, linear guide, transmission parts, conveyor system, supporting parts, operation parts, aluminum frame, fasteners and so on.
