Cross Roller Stages-Counterbore Feed Screw Type CRT Series

Manufacturer	ACME Precision Industry Co.,Ltd.
Description	Cross Roller Stages-Counterbore Feed Screw Type CRTC1025
Part number	CRTC1025

CAD models

Request for quotation

Product selection

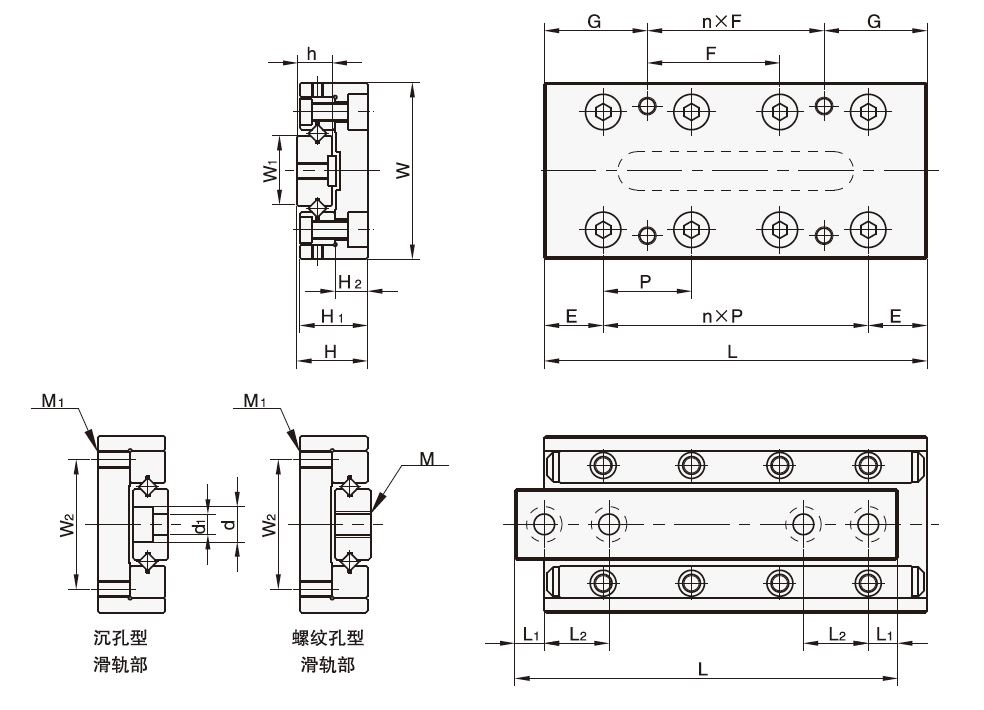

Index	Selector	No.	Travel	H	W	L	G	F	n X F	W2	M1	la	E	P	n X P	H2	(H1)	h	W1	d	d1	l1	l2	Number of bore holes	M	l1	l2	Number of threaded holes	MA	MB	MC	Rated Load (CN)	Rated Load (CoN)	Indicated Value A	Indicated Value B
1	11	1025	12	8±0.1	20±0.1	25	3.5	18	1X18	14	2.6	3	7.5	10	1X10	3.5	7.5	4	6.6	4.1	2.5	3.5	-	2	2.6	5	7.5	3	1.79	1.79	1.79	465	478	2	4
2	12	1035	18	8±0.1	20±0.1	35	3.5	28	1X28	14	2.6	3	7.5	10	2X10	3.5	7.5	4	6.6	4.1	2.5	5	-	2	2.6	7.5	10	3	4.18	4.18	3.59	807	956	2	4
3	13	1045	25	8±0.1	20±0.1	45	12.5	20	1X20	14	2.6	3	7.5	10	3X10	3.5	7.5	4	6.6	4.1	2.5	3.5	6.5	4	2.6	7.5	10	4	5.38	5.38	4.48	962	1195	2	5
4	1	2035	18	12±0.1	30±0.1	35	3.5	28	1X28	22	3	5	10	15	1X15	5.5	11.5	6	12	6	3.5	5	-	2	3	7.5	20	2	7.04	7.04	7.63	1101	1174	2	4
5	2	2050	30	12±0.1	30±0.1	50	3.5	43	1X43	22	3	5	10	15	2X15	5.5	11.5	6	12	6	3.5	7.5	-	2	3	10	15	3	11.7	11.74	11.4	1521	1761	2	4
6	3	2065	40	12±0.1	30±0.1	65	17.5	30	1X30	22	3	5	10	15	3X15	5.5	11.5	6	12	6	3.5	5	11	4	3	10	15	4	16.4	16.4	15.3	1908	2348	2	5
7	4	3055	30	16±0.1	40±0.1	55	7.5	40	1X40	30	4	7	15	25	1X25	7.5	15.5	8	16	7.5	4.5	7.5	-	2	4	10	35	2	33.8	33.8	35.3	3617	4062	2	5
8	5	3080	45	16±0.1	40±0.1	80	7.5	65	1X65	30	4	7	15	25	2X25	7.5	15.5	8	16	7.5	4.5	6	12.5	4	4	15	25	3	60.9	60.9	58.9	5409	6770	2	5
9	6	1025	12	8±0.1	20±0.1	25	3.5	18	1X18	14	2.6	3	7.5	10	1X10	3.5	7.5	4	6.6	4.1	2.5	3.5	-	2	2.6	5	7.5	3	1.79	1.79	1.79	465	478	2	4
10	7	1035	18	8±0.1	20±0.1	35	3.5	28	1X28	14	2.6	3	7.5	10	2X10	3.5	7.5	4	6.6	4.1	2.5	5	-	2	2.6	7.5	10	3	4.18	4.18	3.59	807	956	2	4
11	8	1045	25	8±0.1	20±0.1	45	12.5	20	1X20	14	2.6	3	7.5	10	3X10	3.5	7.5	4	6.6	4.1	2.5	3.5	6.5	4	2.6	7.5	10	4	5.38	5.38	4.48	962	1195	2	5
12	9	2035	18	12±0.1	30±0.1	35	3.5	28	1X28	22	3	5	10	15	1X15	5.5	11.5	6	12	6	3.5	5	-	2	3	7.5	20	2	7.04	7.04	7.63	1101	1174	2	4
13	10	2050	30	12±0.1	30±0.1	50	3.5	43	1X43	22	3	5	10	15	2X15	5.5	11.5	6	12	6	3.5	7.5	-	2	3	10	15	3	11.7	11.74	11.4	1521	1761	2	4
14	14	2065	40	12±0.1	30±0.1	65	17.5	30	1X30	22	3	5	10	15	3X15	5.5	11.5	6	12	6	3.5	5	11	4	3	10	15	4	16.4	16.4	15.3	1908	2348	2	5
