Block Supporter-Bottom Fixing Type-GAPB

Manufacturer	ACME Precision Industry Co.,Ltd.
Description	Block Supporter-Bottom Fixing Type-GAPB8-15
Part number	GAPB8-15

CAD models

Request for quotation

Product selection

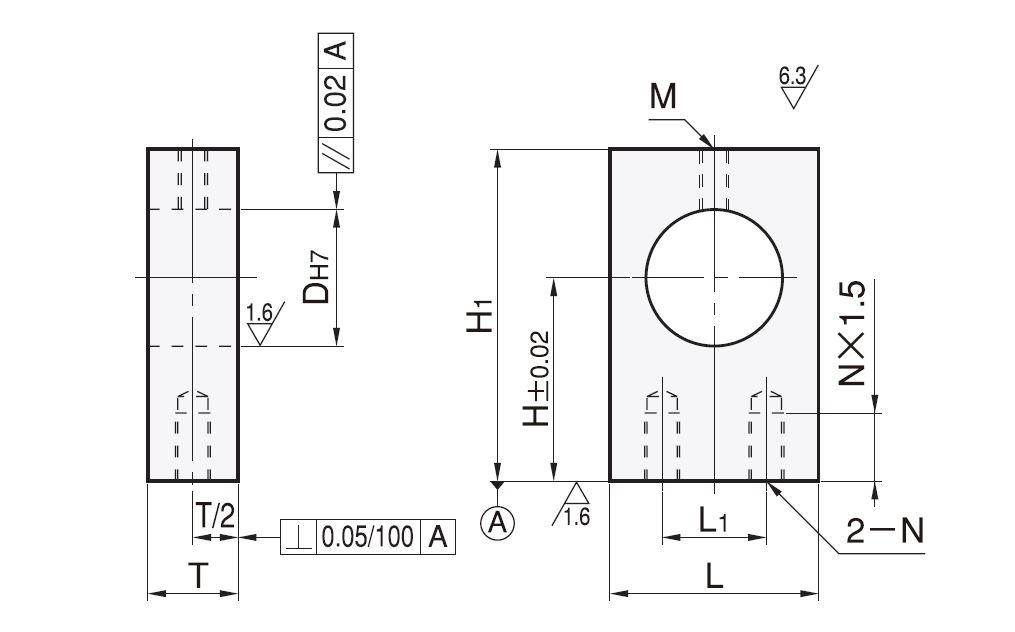

Index	Selector	D	H	L	H1	T	L1	M	N
1	1	8	15～30	16	H+9	12	10	M4	M4
2	2	10	20～30	16	H+10	12	10	M4	M4
3	3	12	20～30	22	H+11	12	14	M4	M4
4	4	13	20～30	22	H+12	12	14	M4	M4
5	5	15	25～40	25	H+15	12	16	M4	M4
6	6	16	25～40	25	H+15	12	16	M4	M4
7	7	18	25～50	32	H+18	16	18	M6	M6
8	8	20	25～50	32	H+18	16	18	M6	M6
9	9	25	30～50	38	H+20	16	24	M6	M6
10	10	30	30～60	50	H+23	22	32	M6	M8
11	11	35	40～60	50	H+25	22	32	M6	M8
12	12	40	40～60	50	H+30	22	32	M6	M8

Material Treatment and Accessories

Documentation

Technical Documents

Contact the supplier

ACME Precision Industry Co.,Ltd.

ACME provide high quality standard parts, precision machining parts and linear actuators for automation industry. The products include linear motion, linear guide, transmission parts, conveyor system, supporting parts, operation parts, aluminum frame, fasteners and so on.
