Block Magnet MQN

Manufacturer	ACME Precision Industry Co.,Ltd.
Description	Block Magnet MQN3-3-5
Part number	MQN3-3-5

CAD models

Request for quotation

Product selection

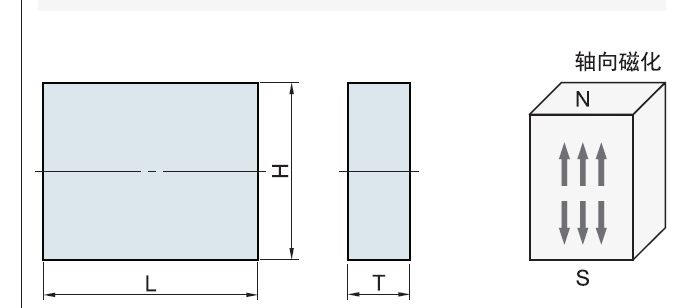

Index	Selector	Code	L	H	T	Adsorbability	Surface magnetic flux density Gauss
1	1	MQN	3	3	5	0.29	3900～4300
2	2	MQN	4	4	5	0.57	4100～4500
3	3	MQN	5	5	5	0.91	4200～4600
4	4	MQN	6	6	6	1.4	4300～4700
5	5	MQN	8	8	6	2.37	4200～4600
6	6	MQN	10	5	1	0.28	1500～1900
7	7	MQN	10	5	2	0.87	2800～3200
8	8	MQN	10	5	5	1.71	4000～4400
9	9	MQN	10	10	1	0.66	1600～2000
10	10	MQN	10	10	2	1.2	2300～2700
11	11	MQN	10	10	8	4.01	4300～4700
12	12	MQN	15	5	3	1.42	2900～3300
13	13	MQN	15	5	5	2.42	3900～4300
14	14	MQN	15	5	10	3.2	4500～4900
15	15	MQN	15	10	3	2.44	2700～3100
16	16	MQN	15	10	5	3.5	3100～3700
17	17	MQN	15	10	10	6.27	4400～4800
18	18	MQN	20	5	10	4.16	4400～4800
19	19	MQN	20	10	5	4.87	3300～3700
20	20	MQN	20	10	10	7.94	4500～4900
21	21	MQN	20	15	5	7.11	3100～3700
22	22	MQN	30	20	5	8.65	2900～3300
23	23	MQN	30	30	5	11.31	3100～3700

Documentation

Technical Document

Contact the supplier

ACME Precision Industry Co.,Ltd.

ACME provide high quality standard parts, precision machining parts and linear actuators for automation industry. The products include linear motion, linear guide, transmission parts, conveyor system, supporting parts, operation parts, aluminum frame, fasteners and so on.
