Adjusting Plate-TypeB MAB Series

Manufacturer	ACME Precision Industry Co.,Ltd.
Description	Adjusting Plate-TypeB MAB4-120-120
Part number	MAB4-120-120

CAD models

Request for quotation

Product selection

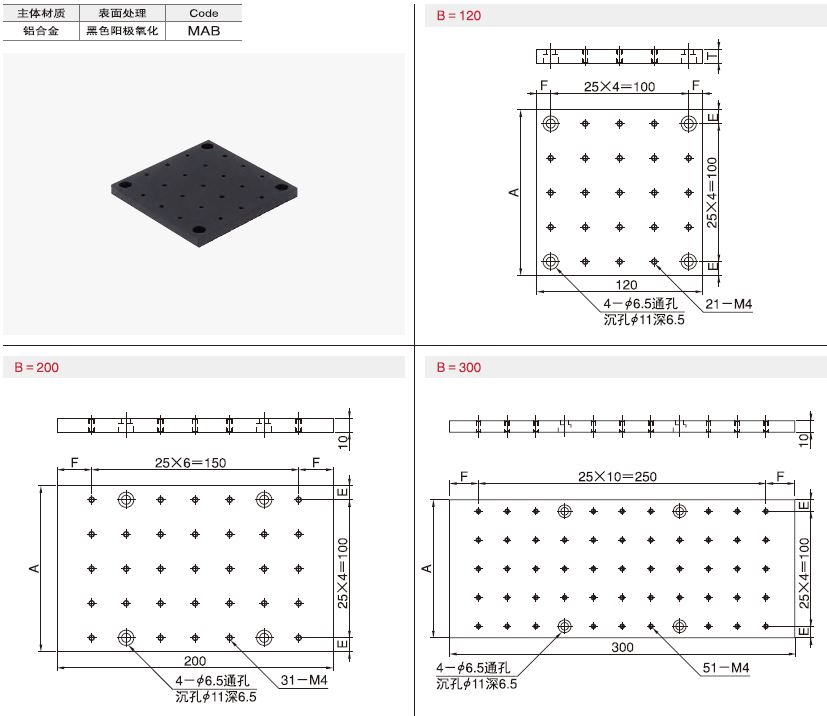

Index	Selector	Code	No.	A	B	Number of threaded holes	E	F
1	14	MAB	4	120	120	21	10	10
2	15	MAB	4	120	200	31	10	25
3	16	MAB	4	120	300	51	10	25
4	1	MAB	4	150	120	21	25	25
5	2	MAB	4	150	200	31	25	25
6	3	MAB	4	150	300	51	25	25
7	4	MAB	4	200	200	31	50	25
8	5	MAB	4	200	300	51	50	25
9	6	MAB	6	120	120	21	10	10
10	7	MAB	6	120	200	31	10	25
11	8	MAB	6	120	300	51	10	25
12	9	MAB	6	150	120	21	25	25
13	10	MAB	6	150	200	31	25	25
14	11	MAB	6	150	300	51	25	25
15	12	MAB	6	200	200	31	50	25
16	13	MAB	6	200	300	51	50	25

Documentation

Technical document

Contact the supplier

ACME Precision Industry Co.,Ltd.

ACME provide high quality standard parts, precision machining parts and linear actuators for automation industry. The products include linear motion, linear guide, transmission parts, conveyor system, supporting parts, operation parts, aluminum frame, fasteners and so on.

ACME Precision Industry Co.,Ltd.

ACME Precision Industry Co.,Ltd.
No.3 Huasheng Lane, Huasheng Industria Park
Middle Dezheng Road
Chang’an Town
523846 Dongguan City
China
www.ap-industry.com
