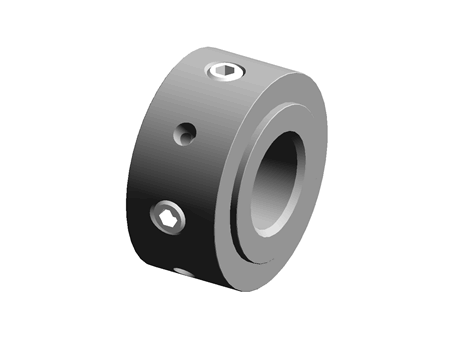

Accessories for Ball Screw-Locking Nut Round Type-BMR/BMRN Series

Manufacturer	ACME Precision Industry Co.,Ltd.
Description	Accessories for Ball Screw-Locking Nut Round Type- BMR17
Part number	BMR17

CAD models

Request for quotation

Product selection

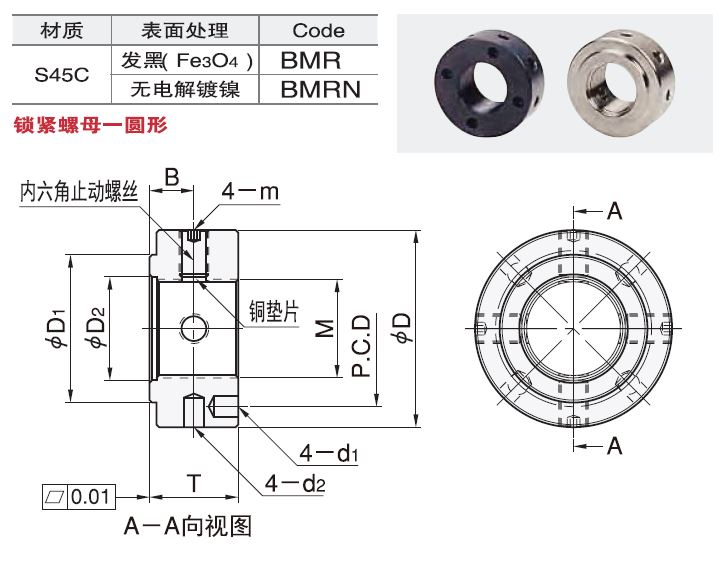

Index	Selector	d	M	D	D1	D2	P.C.D.	T	d1	d2	B	m	Locking Torque(N`m)
1	1	17	M17x1	37	27	-	27	18	4.3	4	10	M6	5400
2	2	20	M20x1	40	30	21	30	18	4.3	4	10	M6	7350
3	3	25	M25x1.5	45	40	26	35	20	4.3	4	12	M6	13200
4	4	30	M30x1.5	50	40	31	40	20	4.3	5	11	M6	19600
5	5	35	M35x1.5	55	50	36	45	22	4.3	5	12	M6	29400
6	6	40	M40x1.5	60	50	41	50	22	4.3	5	12	M6	39200

Treatment

Documentation

Technical Documents

Contact the supplier

ACME Precision Industry Co.,Ltd.

ACME provide high quality standard parts, precision machining parts and linear actuators for automation industry. The products include linear motion, linear guide, transmission parts, conveyor system, supporting parts, operation parts, aluminum frame, fasteners and so on.
