30 Degree Lead Screw-One End Stepped One End Double Stepped-Right-Hand Screw/Left-Hand Screw - BTKR/BTKBR/BTKGR/BTKSR/BTKL/BTKBL/BTKGL/BTKSL

Manufacturer	ACME Precision Industry Co.,Ltd.
Description	30 Degree Lead Screw-One End Stepped One End Double Stepped-Right-Hand Screw/Left-Hand Screw- BTKR12-120-F35-R7-T35-Q7-S30-E6
Part number	BTKR12-120-F35-R7-T35-Q7-S30-E6

CAD models

Request for quotation

Product selection

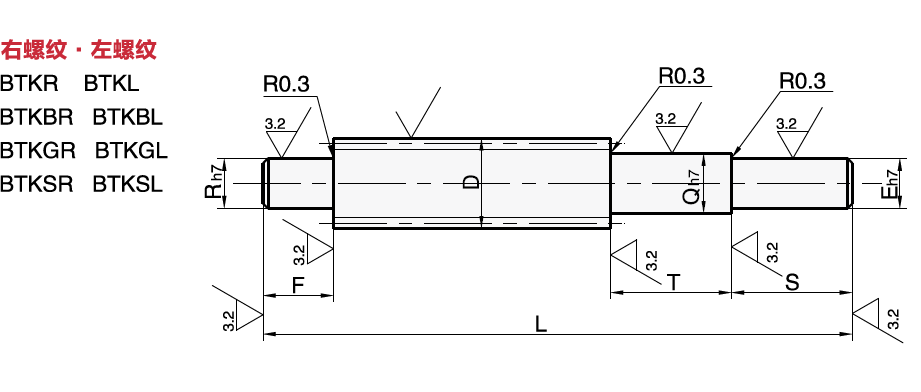

Index	Selector	D	L	F	G	T	S	E	Pitch
1	1	12	80～1000	2≤F≤E·Rx7	2≤G≤Vx7	2≤T≤Qx7	2≤S≤E·Rx7	Q/2≤E≤Q-1,V/2≤E≤V-1	2
2	2	14	80～1000	2≤F≤E·Rx7	2≤G≤Vx7	2≤T≤Qx7	2≤S≤E·Rx7	Q/2≤E≤Q-1,V/2≤E≤V-1	3
3	3	16	100～1200	2≤F≤E·Rx7	2≤G≤Vx7	2≤T≤Qx7	2≤S≤E·Rx7	Q/2≤E≤Q-1,V/2≤E≤V-1	3
4	4	18	150～1200	2≤F≤E·Rx7	2≤G≤Vx7	2≤T≤Qx7	2≤S≤E·Rx7	Q/2≤E≤Q-1,V/2≤E≤V-1	4
5	5	20	150～1200	2≤F≤E·Rx7	2≤G≤Vx7	2≤T≤Qx7	2≤S≤E·Rx7	Q/2≤E≤Q-1,V/2≤E≤V-1	4
6	6	22	150～1200	2≤F≤E·Rx7	2≤G≤Vx7	2≤T≤Qx7	2≤S≤E·Rx7	Q/2≤E≤Q-1,V/2≤E≤V-1	5
7	7	25	150～1200	2≤F≤E·Rx7	2≤G≤Vx7	2≤T≤Qx7	2≤S≤E·Rx7	Q/2≤E≤Q-1,V/2≤E≤V-1	5
8	8	28	150～1200	2≤F≤E·Rx7	2≤G≤Vx7	2≤T≤Qx7	2≤S≤E·Rx7	Q/2≤E≤Q-1,V/2≤E≤V-1	5
9	9	32	200～1200	2≤F≤E·Rx7	2≤G≤Vx7	2≤T≤Qx7	2≤S≤E·Rx7	Q/2≤E≤Q-1,V/2≤E≤V-1	6
10	10	36	200～1200	2≤F≤E·Rx7	2≤G≤Vx7	2≤T≤Qx7	2≤S≤E·Rx7	Q/2≤E≤Q-1,V/2≤E≤V-1	6
11	11	40	200～1200	2≤F≤E·Rx7	2≤G≤Vx7	2≤T≤Qx7	2≤S≤E·Rx7	Q/2≤E≤Q-1,V/2≤E≤V-1	6
12	12	50	200～1200	2≤F≤E·Rx7	2≤G≤Vx7	2≤T≤Qx7	2≤S≤E·Rx7	Q/2≤E≤Q-1,V/2≤E≤V-1	8

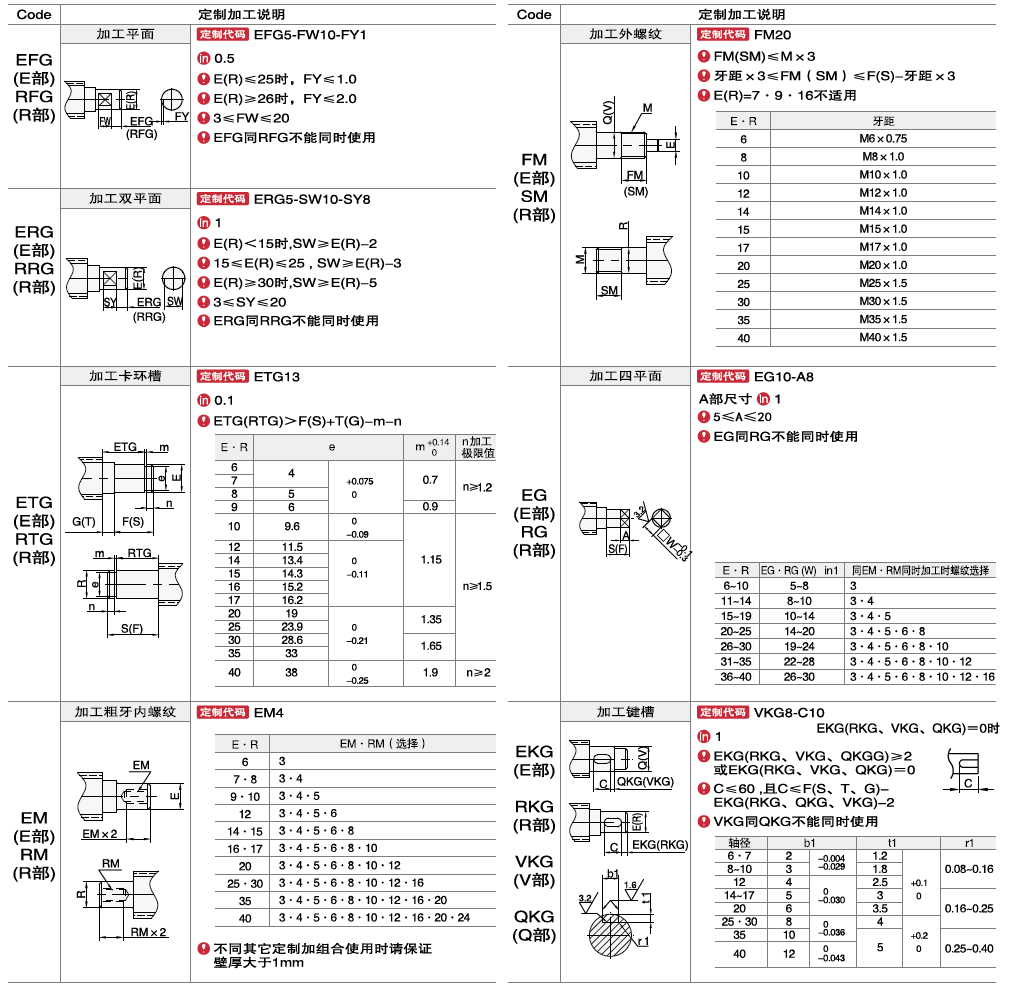

Code No.

Machining plane

Machining dual-plane

Machining annular groove(E part)

Machining annular groove(R part)

Machning Four Flats

Machining keyway

Machining Male Thread(E part)

None

Machining Male Thread(V part)

None

Input EFG/RFG Value

Input FW Value

Input FY Value

Input ERG/RRG Value

Input SW Value

Input SY Value

Input n Value(E part)

Input n Value(R part)

Input A Value

Input EKG/VKG/QKG Value

Input C Value

Machining Female Thread(E part)

Machining Female Thread(R part)

Input FM Value

Input SM Value

Four flat W

None

Documentation

Technical document

Contact the supplier
