30 Degree Lead Screw-One End Double Stepped-Right Thread - BTCR/BTCBR/BTCGR/BTCSR

Manufacturer	ACME Precision Industry Co.,Ltd.
Description	30 Degree Lead Screw-One End Double Stepped-Right Thread- BTCR12-130-T35-Q7-S30-E6
Part number	BTCR12-130-T35-Q7-S30-E6

CAD models

Request for quotation

Product selection

Index	Selector	D	L	S	E	T	Pitch
1	1	12	80～1000	2≤S≤Ex7	Q/2≤E≤Q-1	2≤T≤Qx7	2
2	2	14	80～1000	2≤S≤Ex7	Q/2≤E≤Q-1	2≤T≤Qx7	3
3	3	16	100～1200	2≤S≤Ex7	Q/2≤E≤Q-1	2≤T≤Qx7	3
4	4	18	150～1200	2≤S≤Ex7	Q/2≤E≤Q-1	2≤T≤Qx7	4
5	5	20	150～1200	2≤S≤Ex7	Q/2≤E≤Q-1	2≤T≤Qx7	4
6	6	22	150～1200	2≤S≤Ex7	Q/2≤E≤Q-1	2≤T≤Qx7	5
7	7	25	150～1200	2≤S≤Ex7	Q/2≤E≤Q-1	2≤T≤Qx7	5
8	8	28	150～1200	2≤S≤Ex7	Q/2≤E≤Q-1	2≤T≤Qx7	5
9	9	32	200～1200	2≤S≤Ex7	Q/2≤E≤Q-1	2≤T≤Qx7	6
10	10	36	200～1200	2≤S≤Ex7	Q/2≤E≤Q-1	2≤T≤Qx7	6
11	11	40	200～1200	2≤S≤Ex7	Q/2≤E≤Q-1	2≤T≤Qx7	6
12	12	50	200～1200	2≤S≤Ex7	Q/2≤E≤Q-1	2≤T≤Qx7	8

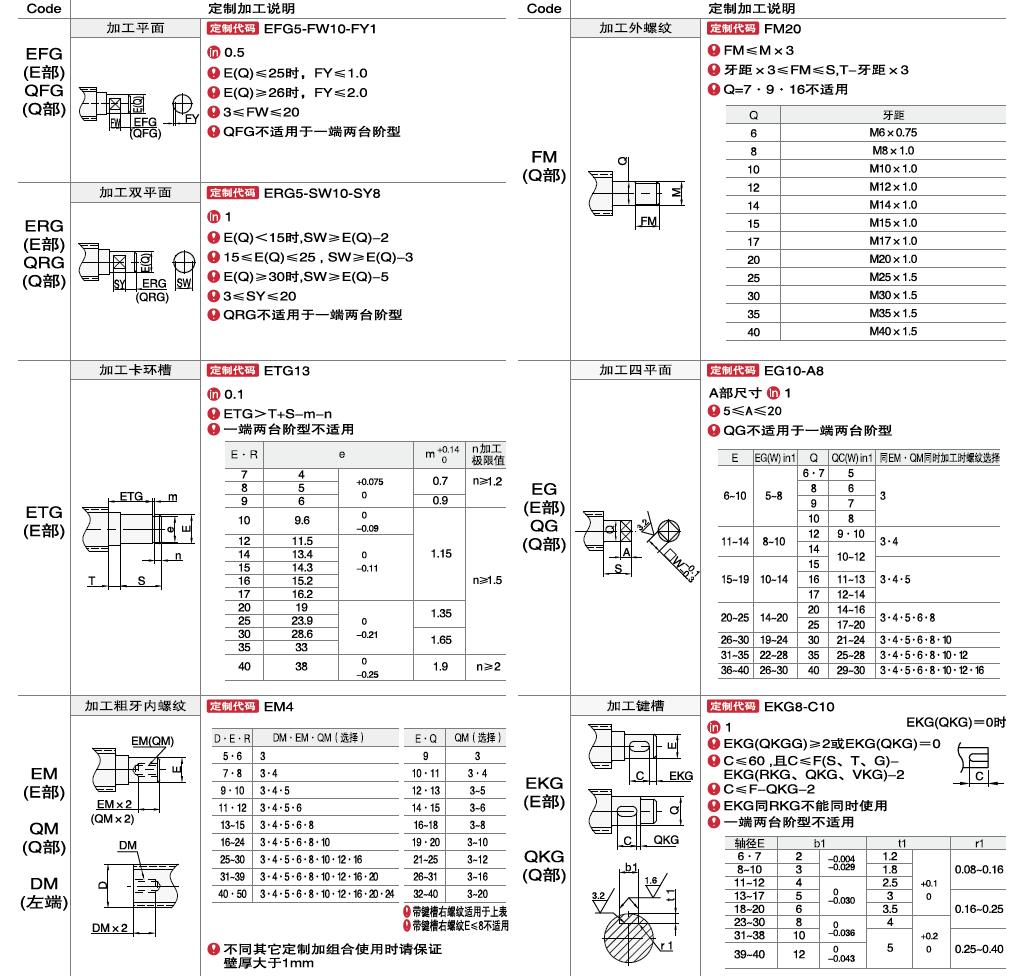

Code No.

Machining plane

Machining dual-plane

Machining annular groove

Machining Female Thread(Left side)

Machning Four Flats

Machining keyway

Machining Male Thread

None

Machining Female Thread

Four Flats W

None

Input EFG Value

Input FW Value

Input FY Value

Input ERG Value

Input SW Value

Input SY Value

Input n Value

Input FM Value

Input A Value

Input EKG/QKG Value

Input C Value

Documentation

Technical document

Contact the supplier
