30 Degree Lead Screw - for Support Unit - BTMR/BTML/BTMBR/BTMBL/BTMGR/BTMGL/BTMSR/BTMSL

Manufacturer	ACME Precision Industry Co.,Ltd.
Description	30 Degree Lead Screw - for Support Unit - BTMR12-80-S20
Part number	BTMR12-80-S20

CAD models

Request for quotation

Product selection

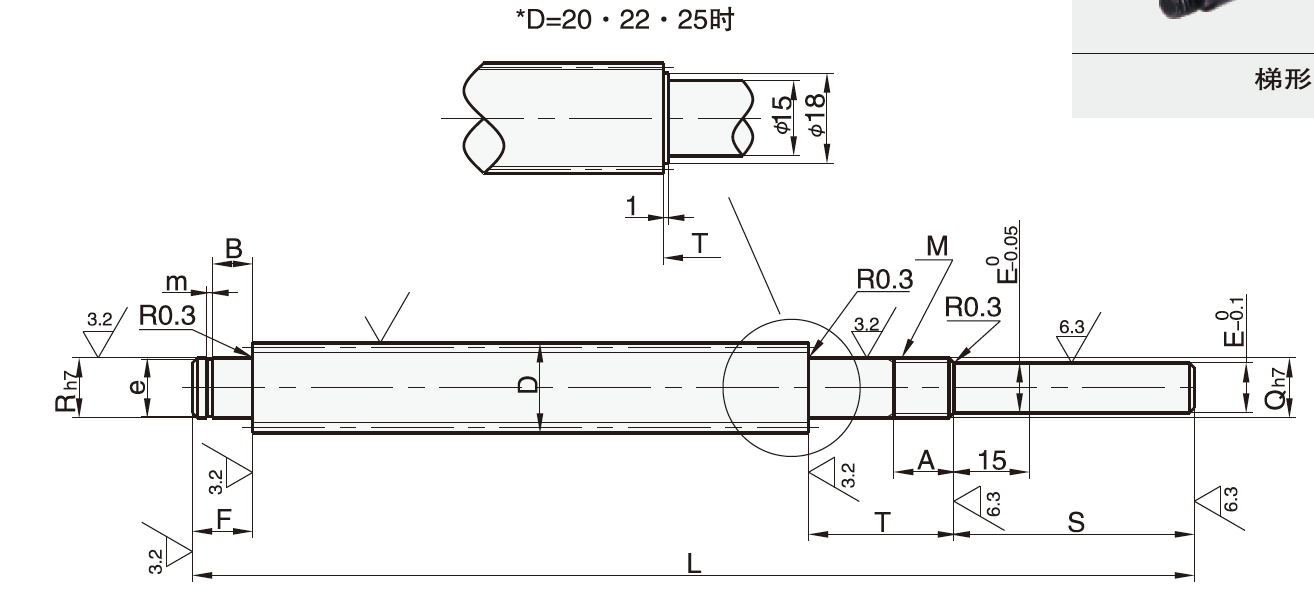

Index	Selector	D	L	S	B	T	Q	A	M X Pitch	E	F	R	e	m	P
1	1	12	80～1000	2≤S≤80	7	26	8	11	8x1.0	6	10	8	5	0.7	2
2	2	14	80～1000	2≤S≤80	8	29	10	12	10x1.0	8	12	10	9.6	1.15	3
3	3	16	100～1200	2≤S≤95	8	29	12	12	12x1.0	10	12	12	11.5	1.15	3
4	4	18	150～1200	2≤S≤95	8	29	12	12	12x1.0	10	12	12	11.5	1.15	4
5	5	20	150～1200	2≤S≤100	9	34	15	14	15x1.0	12	12	15	14.3	1.15	4
6	6	22	150～1200	2≤S≤100	9	34	15	14	15x1.0	12	12	15	14.3	1.15	5
7	7	25	150～1200	2≤S≤100	9	34	15	14	15x1.0	12	12	15	14.3	1.15	5

Type

lmin ~ lmax

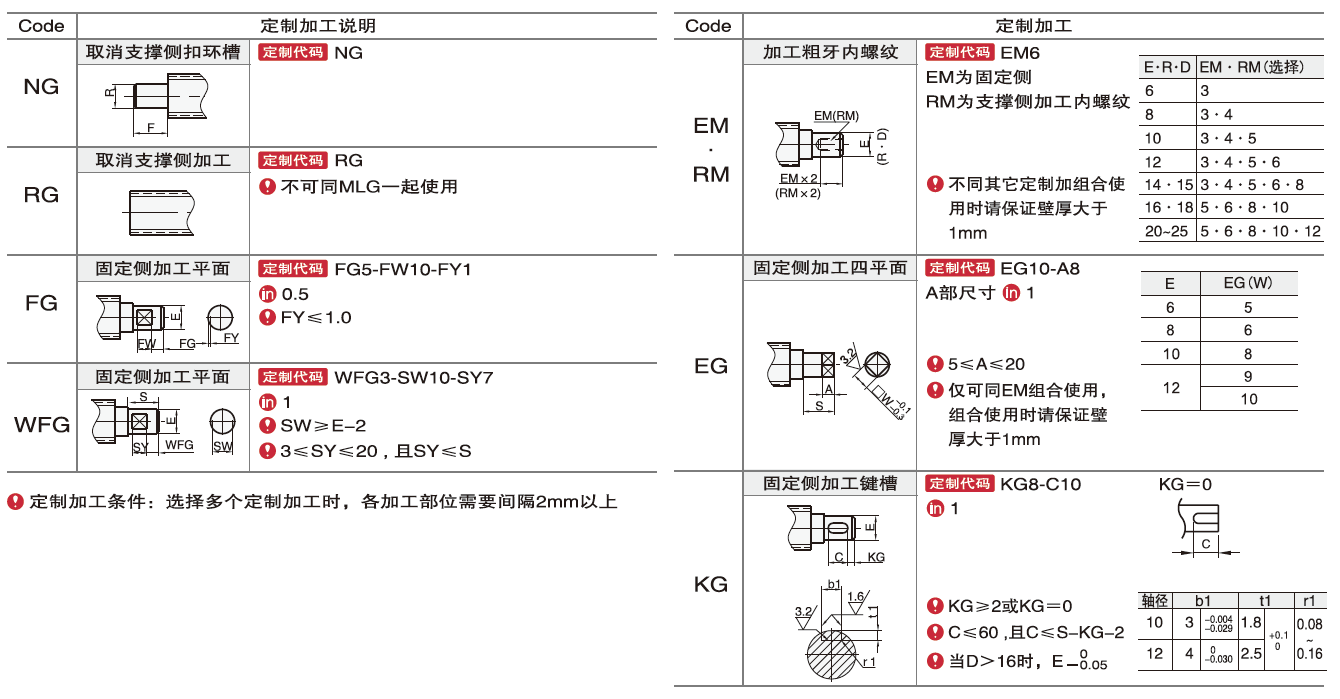

Machning Support Side

Machining Flat in Fixed Side

Machining Keyway

Machining Thread in Fixed side

Input FG/WFG Value

Input FW/SY Value

Input Depth of Flat

Input KG Value

Input C Value

Machining Female Thread in Support Side

Machining Four Flats in Fixed side

Not Available

Input A Value

Documentation

Technical Document

Contact the supplier
