WUG - Guide units for cylinders to ISO 6432 standard - Double unit

Manufacturer	WAIRCOM

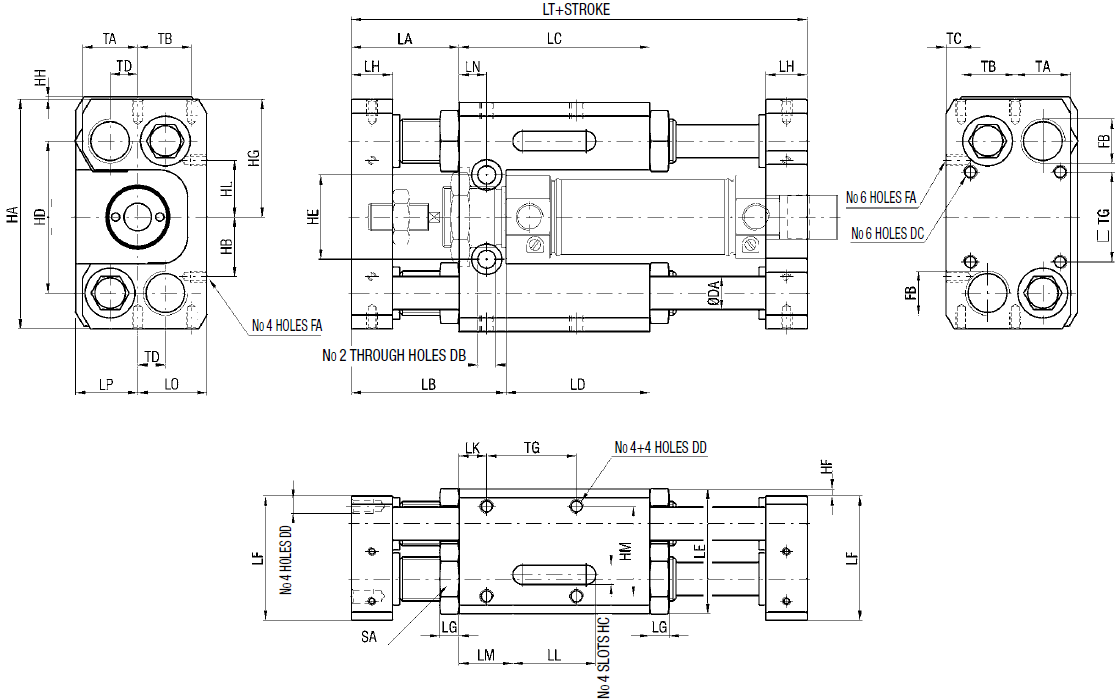

Description	WUG - Guide units for cylinders to ISO 6432 standard WUGDB 12-16/50
Part number	WUGDB 12-16/50

CAD models

Request for quotation

Product selection

Index	Selector	SIZE (mm)	DA on bushings (mm)	DA with sleeves (mm)	DB (mm)	DC (mm)	DD (mm)	FA (mm)	FB (mm)	HA (mm)	HB (mm)	HC (mm)	HD (mm)	HE (mm)	HF (mm)	HG (mm)	HH (mm)	HL (mm)	HM (mm)	LA (mm)	LB (mm)	LC (mm)	LD (mm)	LE (mm)	LF (mm)	LG (mm)	LH (mm)	LK (mm)	LL (mm)	LM (mm)	LN (mm)	LO (mm)	LP (mm)	LT (mm)	SA (mm)	TA (mm)	TB (mm)	TC (mm)	TD (mm)	TG (mm)	WEIGHT on bushings (g)	WEIGHT with sleeves (g)	INCREM. on bushings<br />every 10 mm (g)	INCREM. with sleeves<br />every 10 mm (g)
1	2	12-16	10	10	5.2	M4	M5	M4	M12*1,25	65	18	6	47	24	1.3	31.5	1	18	32.5	30	43	60	47	40	40	7	15	19	16	22	6.5	22.5	19	120	Ch.14	17.5	17.5	5	8.5	22	740	740	12	12
2	3	20	(B) 12	(M) 10	6.5	M4	M5	M4	M16*1,5	83	21.5	7	55	30.5	2.5	40.5	1	20.5	32.5	33	50	69	52	45	45	7	15	10	30	19.5	10	25	22.15	135	Ch.21	20	19.5	5.5	10	32.5	(B) 1170	(M) 1110	(B) 18	(M) 12
3	4	25	(B) 12	(M) 10	6.5	M4	M5	M4	M16*1,5	83	21.5	7	55	30.5	2.5	40.5	1	20.5	32.5	39	56	69	52	45	45	7	15	10	30	19.5	10	25	22.15	135	Ch.21	20	19.5	5.5	10	32.5	(B) 1170	(M) 1110	(B) 18	(M) 12
