GES 2M clamping hub

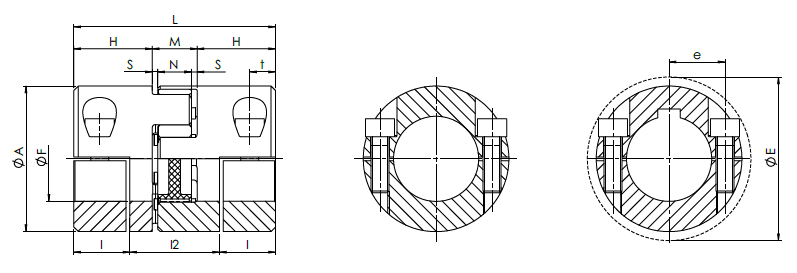

Split clamping hub execution

Miktar	Manufacturer	Description	Part number	Mass
1	SIT	GES 2M clamping hub	GES2M 14 F5 F5	0.025 kg
1			AES 14 B

CAD modelleri

Fiyat teklif talebi

Ürün seçimi

Index	Selector	Type	C	A (mm)	H (mm)	l (mm)	L (mm)	M (mm)	Bores range (F)	Material
1	3	14	M3	30	18.5	14.5	50	13	5-16	aluminium
2	4	19/24	M6	40	25	17.5	66	16	8-20	aluminium
3	5	24/28	M6	55	30	22	78	18	10-28	aluminium
4	6	28/38	M8	65	35	25	90	20	14-38	aluminium
5	7	38/45	M8	80	45	33	114	24	18-45	aluminium
6	8	42	M10	95	50	36.5	126	26	22-50	aluminium
7	9	48	M12	105	56	39.5	140	28	22-55	aluminium

Bore Size Left (mm)

Bore Size Right (mm)

Left Hub Bore Type

Right Hub Bore Type

Spider

Belgelendirme

Catalog

Tedarikçi ile iletişim kurun

SIT SpA

SIT S.p.A manufactures high quality power transmission components for industrial applications: pulleys, couplings, locking devices, taper bushes and motor bases. ATTENTION: CAD Drawings provide information on generic dimensions and do not represent technical features.
