H Halbmondring

CAD-Modelle

Angebotsanfrage

Produktauswahl

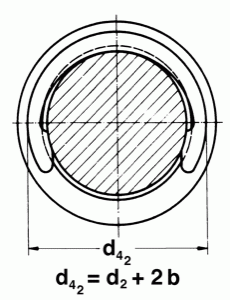

Index	Selector	Bezeichnung	Nennmaß d1	Dicke s	freier Durchmesser d3	b	d4	Nut Durchmesser d2
1	1	H 3.0	3	0.4	2.18	0.9	3.98	2.3
2	2	H 4.0	4	0.4	3	1	5	3.2
3	3	H 5.0	5	0.6	3.8	1.2	6.2	4
4	4	H 6.0	6	0.7	4.8	1.3	7.4	5
5	5	H 6.5	6.5	0.7	5.6	1.3	8.2	5.8
6	6	H 7.0	7	0.8	5.8	1.4	8.6	6
7	7	H 8.0	8	0.8	6.8	1.6	10	7
8	8	H 9.0	9	1	7.8	1.7	11.2	8
9	9	H 10.0	10	1	8.75	1.7	12.15	9
10	10	H 11.0	11	1	9.65	1.8	13.2	10
11	11	H 12.0	12	1	10.55	1.9	14.35	10.9
12	12	H 13.0	13	1	11.4	2	15.4	11.8
13	13	H 14.0	14	1	12.3	2	16.3	12.7
14	14	H 15.0	15	1	13.2	2.1	17.4	13.6
15	15	H 16.0	16	1	14.1	2.2	18.5	14.5
16	16	H 17.0	17	1	14.9	2.25	19.4	15.4
17	17	H 18.0	18	1.2	15.8	2.3	20.4	16.3
18	18	H 19.0	19	1.2	16.7	2.4	21.5	17.2
19	19	H 20.0	20	1.2	17.55	2.55	22.65	18.1
20	20	H 22.0	22	1.2	19.4	2.8	25	19.9
21	21	H 23.0	23	1.2	20.2	2.9	26	20.8
22	22	H 24.0	24	1.2	21.1	3	27.1	21.7
23	23	H 25.0	25	1.2	22	3.15	28.3	22.6
24	24	H 26.0	26	1.2	22.9	3.25	29.4	23.5
25	25	H 28.0	28	1.5	24.6	3.5	31.6	25.2
26	26	H 30.0	30	1.5	26.3	3.7	33.7	27
27	27	H 32.0	32	1.5	28.1	4	36.1	28.8
28	28	H 35.0	35	1.5	30.8	4.3	39.4	31.5
29	29	H 36.0	36	1.75	31.7	4.4	40.5	32.4
30	30	H 38.0	38	1.75	33.4	4.6	42.6	34.2
31	31	H 40.0	40	1.75	35.2	4.9	45	36
32	32	H 42.0	42	1.75	37	5.1	47.2	37.8
33	33	H 45.0	45	1.75	39.6	5.5	50.6	40.5
34	34	H 48.0	48	1.75	42.3	5.9	54.1	43.2
35	35	H 50.0	50	2	44	6.2	56.4	45
36	36	H 52.0	52	2	46	6.3	58.6	47
37	37	H 55.0	55	2	48.5	6.5	61.5	50

Zustand

Sicherungsring, Halbmondring, radial montierbar
