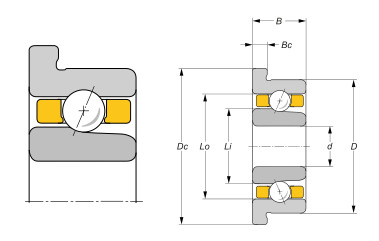

Removable angular ball bearings with flange, inch dimensions of series RKA

Manufacturer	Myonic GmbH
Description	Removable angular ball bearings with flange, inch dimensions of series RKA
Manufacturer Part Number	RKA 8020X
Product Page	https://myonic.com/produkte/
d1 [mm]	6,35
D1 [mm]	15,875
B	4,978
Li	9.48

Lo	12.96
r max	0.30
h min	0.8
Ball set n x Ø [mm]	8 x 2.381
Basic load dynamic C	878
Basic load static Co	274
Basic load axial Coa	640

CAD-mallien

Pyydä tarjousta

Tuotevalikoima

Index	Selector	Manufacturer Part Number	Description	Product Page	d1 [mm]	D1 [mm]	B	Li	Lo	r max	h min	Ball set n x Ø [mm]	Basic load dynamic C	Basic load static Co	Basic load axial Coa
1	1	RKA 3010X	Removable angular ball bearings with flange, inch dimensions of series RKA	myonic.com	2,381	7,938	2,778	3.95	6.23	0.13	0.5	6 x 1.588	338	81	188
2	2	RKA 4012X	Removable angular ball bearings with flange, inch dimensions of series RKA	myonic.com	3,175	9,525	3,969	5.08	7.32	0.30	0.7	7 x 1.588	391	104	246
3	3	RKA 6016X	Removable angular ball bearings with flange, inch dimensions of series RKA	myonic.com	4,763	12,7	3,969	6.88	10.35	0.3	0.8	7 x 2.381	780	217	503
4	4	RKA 8020X	Removable angular ball bearings with flange, inch dimensions of series RKA	myonic.com	6,35	15,875	4,978	9.48	12.96	0.30	0.8	8 x 2.381	878	274	640
