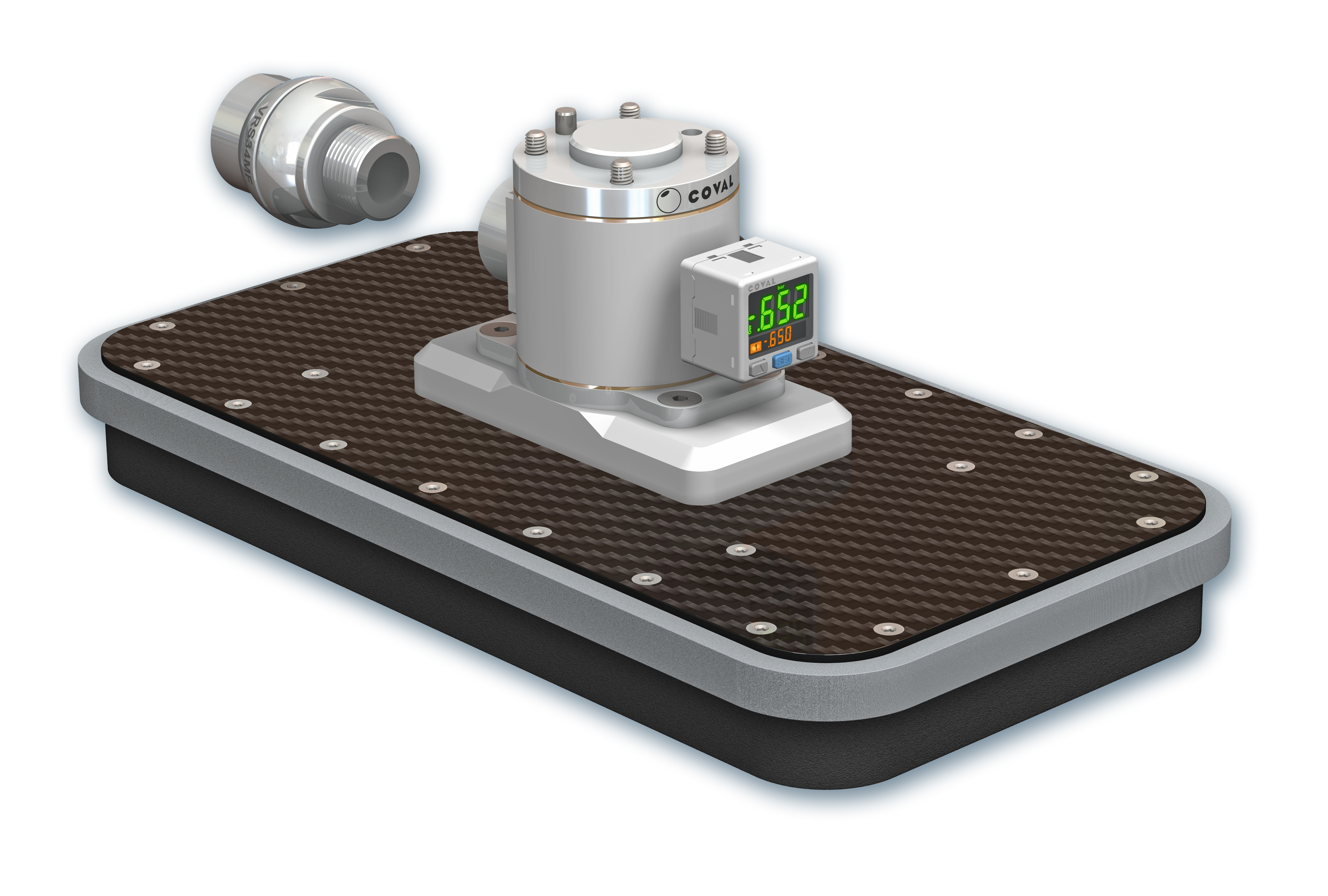

Carbon Vacuum Grippers without integrated vacuum generator, CVGC-G0

Manufacturer	COVAL

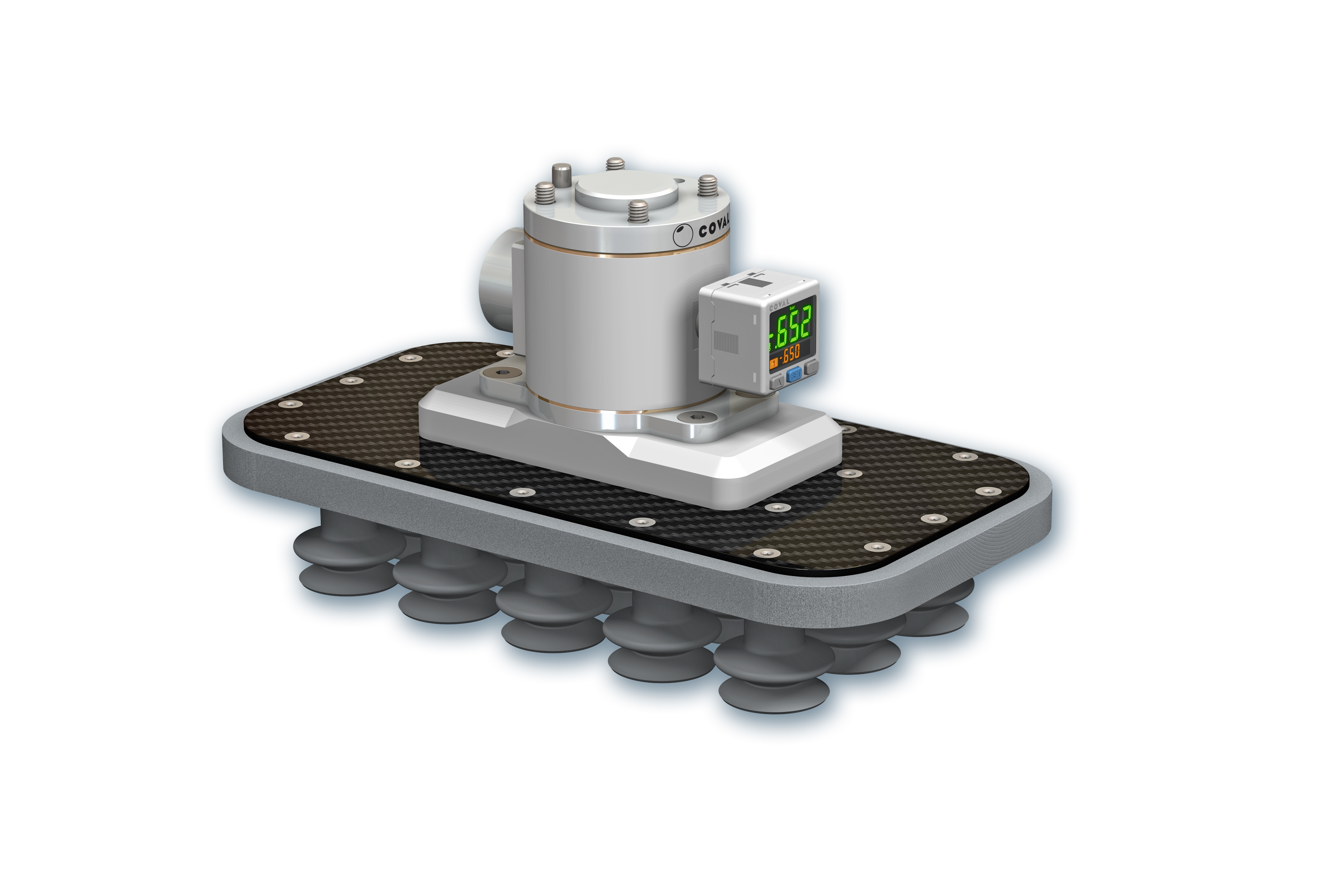

Description	Carbon Vacuum Gripper, 240X120 mm, without integrated vacuum generator, with rotary union, gripping interface maxi type, 1.5 bellows suction cups Ø 33 mm in natural rubber, mounting Ø50 mm (ISO 9409-1-50-4-M6)
Part number	CVGC240X120DVSA33JKXHXG0RVOA50
Dimensions	240x120 mm
Capacity	38 kg
Gripping force	180 N
Mass	1.3 kg

CAD models

Request for quotation

Product selection

Index	Selector	Part number	Dimensions L x W (mm)	Gripping interfaces	Pattern layout	Interface type	Vacuum level display	Robot mounting interface	Capacity (kg)	Gripping force (N)	Weight (kg)
1	1	CVGC240X120DVSA33JKXHXG0RVOA50	240x120	1.5 bellows suction cups Ø 33 mm	straight	maxi	Without	ISO 9409-1-50-4-M6	38	180	1.3
2	2	CVGC240X120DVSA33JKXHXG0RVAA50	240x120	1.5 bellows suction cups Ø 33 mm	straight	maxi	Vacuum switch with electronic display	ISO 9409-1-50-4-M6	38	180	1.3
3	3	CVGC240X120DVSA33JKXHXG0RVOA63	240x120	1.5 bellows suction cups Ø 33 mm	straight	maxi	Without	ISO 9409-1-63-4-M6	38	180	1.3
4	4	CVGC240X120DVSA33JKXHXG0RVAA63	240x120	1.5 bellows suction cups Ø 33 mm	straight	maxi	Vacuum switch with electronic display	ISO 9409-1-63-4-M6	38	180	1.3
5	5	CVGC240X120DVSA33JKXHXG0RVOA80	240x120	1.5 bellows suction cups Ø 33 mm	straight	maxi	Without	ISO 9409-1-80-6-M8	38	180	1.3
6	6	CVGC240X120DVSA33JKXHXG0RVAA80	240x120	1.5 bellows suction cups Ø 33 mm	straight	maxi	Vacuum switch with electronic display	ISO 9409-1-80-6-M8	38	180	1.3
7	7	CVGC240X120DVSA25JIXHXG0RVOA50	240x120	1.5 bellows suction cups Ø 25 mm	straight	medium	Without	ISO 9409-1-50-4-M6	38	180	1.3
8	8	CVGC240X120DVSA25JIXHXG0RVAA50	240x120	1.5 bellows suction cups Ø 25 mm	straight	medium	Vacuum switch with electronic display	ISO 9409-1-50-4-M6	38	180	1.3
9	9	CVGC240X120DVSA25JIXHXG0RVOA63	240x120	1.5 bellows suction cups Ø 25 mm	straight	medium	Without	ISO 9409-1-63-4-M6	38	180	1.3
10	10	CVGC240X120DVSA25JIXHXG0RVAA63	240x120	1.5 bellows suction cups Ø 25 mm	straight	medium	Vacuum switch with electronic display	ISO 9409-1-63-4-M6	38	180	1.3
11	11	CVGC240X120DVSA25JIXHXG0RVOA80	240x120	1.5 bellows suction cups Ø 25 mm	straight	medium	Without	ISO 9409-1-80-6-M8	38	180	1.3
12	12	CVGC240X120DVSA25JIXHXG0RVAA80	240x120	1.5 bellows suction cups Ø 25 mm	straight	medium	Vacuum switch with electronic display	ISO 9409-1-80-6-M8	38	180	1.3
13	13	CVGC240X120QF2SXHXG0RVOA50	240x120	foam, Ø12mm	staggered	mini	Without	ISO 9409-1-50-4-M6	38	180	1.3
14	14	CVGC240X120QF2SXHXG0RVAA50	240x120	foam, Ø12mm	staggered	mini	Vacuum switch with electronic display	ISO 9409-1-50-4-M6	38	180	1.3
15	15	CVGC240X120QF2SXHXG0RVOA63	240x120	foam, Ø12mm	staggered	mini	Without	ISO 9409-1-63-4-M6	38	180	1.3
16	16	CVGC240X120QF2SXHXG0RVAA63	240x120	foam, Ø12mm	staggered	mini	Vacuum switch with electronic display	ISO 9409-1-63-4-M6	38	180	1.3
17	17	CVGC240X120QF2SXHXG0RVOA80	240x120	foam, Ø12mm	staggered	mini	Without	ISO 9409-1-80-6-M8	38	180	1.3
18	18	CVGC240X120QF2SXHXG0RVAA80	240x120	foam, Ø12mm	staggered	mini	Vacuum switch with electronic display	ISO 9409-1-80-6-M8	38	180	1.3
19	19	CVGC240X120DF2LXHXG0RVOA50	240x120	foam, Ø27x12mm	straight	maxi	Without	ISO 9409-1-50-4-M6	38	180	1.3
20	20	CVGC240X120DF2LXHXG0RVAA50	240x120	foam, Ø27x12mm	straight	maxi	Vacuum switch with electronic display	ISO 9409-1-50-4-M6	38	180	1.3
21	21	CVGC240X120DF2LXHXG0RVOA63	240x120	foam, Ø27x12mm	straight	maxi	Without	ISO 9409-1-63-4-M6	38	180	1.3
22	22	CVGC240X120DF2LXHXG0RVAA63	240x120	foam, Ø27x12mm	straight	maxi	Vacuum switch with electronic display	ISO 9409-1-63-4-M6	38	180	1.3
23	23	CVGC240X120DF2LXHXG0RVOA80	240x120	foam, Ø27x12mm	straight	maxi	Without	ISO 9409-1-80-6-M8	38	180	1.3
24	24	CVGC240X120DF2LXHXG0RVAA80	240x120	foam, Ø27x12mm	straight	maxi	Vacuum switch with electronic display	ISO 9409-1-80-6-M8	38	180	1.3
25	25	CVGC320X160DVSA33JKXHXG0RVOA50	320X160	1.5 bellows suction cups Ø 33 mm	straight	maxi	Without	ISO 9409-1-50-4-M6	68	330	1.8
26	26	CVGC320X160DVSA33JKXHXG0RVAA50	320X160	1.5 bellows suction cups Ø 33 mm	straight	maxi	Vacuum switch with electronic display	ISO 9409-1-50-4-M6	68	330	1.8
27	27	CVGC320X160DVSA33JKXHXG0RVOA63	320X160	1.5 bellows suction cups Ø 33 mm	straight	maxi	Without	ISO 9409-1-63-4-M6	68	330	1.8
28	28	CVGC320X160DVSA33JKXHXG0RVAA63	320X160	1.5 bellows suction cups Ø 33 mm	straight	maxi	Vacuum switch with electronic display	ISO 9409-1-63-4-M6	68	330	1.8
29	29	CVGC320X160DVSA33JKXHXG0RVOA80	320X160	1.5 bellows suction cups Ø 33 mm	straight	maxi	Without	ISO 9409-1-80-6-M8	68	330	1.8
30	30	CVGC320X160DVSA33JKXHXG0RVAA80	320X160	1.5 bellows suction cups Ø 33 mm	straight	maxi	Vacuum switch with electronic display	ISO 9409-1-80-6-M8	68	330	1.8
31	31	CVGC320X160DVSA25JIXHXG0RVOA50	320X160	1.5 bellows suction cups Ø 25 mm	straight	medium	Without	ISO 9409-1-50-4-M6	68	330	1.8
32	32	CVGC320X160DVSA25JIXHXG0RVAA50	320X160	1.5 bellows suction cups Ø 25 mm	straight	medium	Vacuum switch with electronic display	ISO 9409-1-50-4-M6	68	330	1.8
33	33	CVGC320X160DVSA25JIXHXG0RVOA63	320X160	1.5 bellows suction cups Ø 25 mm	straight	medium	Without	ISO 9409-1-63-4-M6	68	330	1.8
34	34	CVGC320X160DVSA25JIXHXG0RVAA63	320X160	1.5 bellows suction cups Ø 25 mm	straight	medium	Vacuum switch with electronic display	ISO 9409-1-63-4-M6	68	330	1.8
35	35	CVGC320X160DVSA25JIXHXG0RVOA80	320X160	1.5 bellows suction cups Ø 25 mm	straight	medium	Without	ISO 9409-1-80-6-M8	68	330	1.8
36	36	CVGC320X160DVSA25JIXHXG0RVAA80	320X160	1.5 bellows suction cups Ø 25 mm	straight	medium	Vacuum switch with electronic display	ISO 9409-1-80-6-M8	68	330	1.8
37	37	CVGC320X160QF2SXHXG0RVOA50	320X160	foam, Ø12mm	staggered	mini	Without	ISO 9409-1-50-4-M6	68	330	1.5
38	38	CVGC320X160QF2SXHXG0RVAA50	320X160	foam, Ø12mm	staggered	mini	Vacuum switch with electronic display	ISO 9409-1-50-4-M6	68	330	1.5
39	39	CVGC320X160QF2SXHXG0RVOA63	320X160	foam, Ø12mm	staggered	mini	Without	ISO 9409-1-63-4-M6	68	330	1.5
40	40	CVGC320X160QF2SXHXG0RVAA63	320X160	foam, Ø12mm	staggered	mini	Vacuum switch with electronic display	ISO 9409-1-63-4-M6	68	330	1.5
41	41	CVGC320X160QF2SXHXG0RVOA80	320X160	foam, Ø12mm	staggered	mini	Without	ISO 9409-1-80-6-M8	68	330	1.5
42	42	CVGC320X160QF2SXHXG0RVAA80	320X160	foam, Ø12mm	staggered	mini	Vacuum switch with electronic display	ISO 9409-1-80-6-M8	68	330	1.5
43	43	CVGC320X160DF2LXHXG0RVOA50	320X160	foam, Ø27x12mm	straight	maxi	Without	ISO 9409-1-50-4-M6	68	330	1.5
44	44	CVGC320X160DF2LXHXG0RVAA50	320X160	foam, Ø27x12mm	straight	maxi	Vacuum switch with electronic display	ISO 9409-1-50-4-M6	68	330	1.5
45	45	CVGC320X160DF2LXHXG0RVOA63	320X160	foam, Ø27x12mm	straight	maxi	Without	ISO 9409-1-63-4-M6	68	330	1.5
46	46	CVGC320X160DF2LXHXG0RVAA63	320X160	foam, Ø27x12mm	straight	maxi	Vacuum switch with electronic display	ISO 9409-1-63-4-M6	68	330	1.5
47	47	CVGC320X160DF2LXHXG0RVOA80	320X160	foam, Ø27x12mm	straight	maxi	Without	ISO 9409-1-80-6-M8	68	330	1.5
48	48	CVGC320X160DF2LXHXG0RVAA80	320X160	foam, Ø27x12mm	straight	maxi	Vacuum switch with electronic display	ISO 9409-1-80-6-M8	68	330	1.5
49	49	CVGC350X250DVSA33JKXHXG0RVOA50	350X250	1.5 bellows suction cups Ø 33 mm	straight	maxi	Without	ISO 9409-1-50-4-M6	100	565	2.6
50	50	CVGC350X250DVSA33JKXHXG0RVAA50	350X250	1.5 bellows suction cups Ø 33 mm	straight	maxi	Vacuum switch with electronic display	ISO 9409-1-50-4-M6	100	565	2.6
51	51	CVGC350X250DVSA33JKXHXG0RVOA63	350X250	1.5 bellows suction cups Ø 33 mm	straight	maxi	Without	ISO 9409-1-63-4-M6	100	565	2.6
52	52	CVGC350X250DVSA33JKXHXG0RVAA63	350X250	1.5 bellows suction cups Ø 33 mm	straight	maxi	Vacuum switch with electronic display	ISO 9409-1-63-4-M6	100	565	2.6
53	53	CVGC350X250DVSA33JKXHXG0RVOA80	350X250	1.5 bellows suction cups Ø 33 mm	straight	maxi	Without	ISO 9409-1-80-6-M8	100	565	2.6
54	54	CVGC350X250DVSA33JKXHXG0RVAA80	350X250	1.5 bellows suction cups Ø 33 mm	straight	maxi	Vacuum switch with electronic display	ISO 9409-1-80-6-M8	100	565	2.6
55	55	CVGC350X250DVSA25JIXHXG0RVOA50	350X250	1.5 bellows suction cups Ø 25 mm	straight	medium	Without	ISO 9409-1-50-4-M6	100	565	2.6
56	56	CVGC350X250DVSA25JIXHXG0RVAA50	350X250	1.5 bellows suction cups Ø 25 mm	straight	medium	Vacuum switch with electronic display	ISO 9409-1-50-4-M6	100	565	2.6
57	57	CVGC350X250DVSA25JIXHXG0RVOA63	350X250	1.5 bellows suction cups Ø 25 mm	straight	medium	Without	ISO 9409-1-63-4-M6	100	565	2.6
58	58	CVGC350X250DVSA25JIXHXG0RVAA63	350X250	1.5 bellows suction cups Ø 25 mm	straight	medium	Vacuum switch with electronic display	ISO 9409-1-63-4-M6	100	565	2.6
59	59	CVGC350X250DVSA25JIXHXG0RVOA80	350X250	1.5 bellows suction cups Ø 25 mm	straight	medium	Without	ISO 9409-1-80-6-M8	100	565	2.6
60	60	CVGC350X250DVSA25JIXHXG0RVAA80	350X250	1.5 bellows suction cups Ø 25 mm	straight	medium	Vacuum switch with electronic display	ISO 9409-1-80-6-M8	100	565	2.6
61	61	CVGC350X250QF2SXHXG0RVOA50	350X250	foam, Ø12mm	staggered	mini	Without	ISO 9409-1-50-4-M6	100	565	1.9
62	62	CVGC350X250QF2SXHXG0RVAA50	350X250	foam, Ø12mm	staggered	mini	Vacuum switch with electronic display	ISO 9409-1-50-4-M6	100	565	1.9
63	63	CVGC350X250QF2SXHXG0RVOA63	350X250	foam, Ø12mm	staggered	mini	Without	ISO 9409-1-63-4-M6	100	565	1.9
64	64	CVGC350X250QF2SXHXG0RVAA63	350X250	foam, Ø12mm	staggered	mini	Vacuum switch with electronic display	ISO 9409-1-63-4-M6	100	565	1.9
65	65	CVGC350X250QF2SXHXG0RVOA80	350X250	foam, Ø12mm	staggered	mini	Without	ISO 9409-1-80-6-M8	100	565	1.9
66	66	CVGC350X250QF2SXHXG0RVAA80	350X250	foam, Ø12mm	staggered	mini	Vacuum switch with electronic display	ISO 9409-1-80-6-M8	100	565	1.9
67	67	CVGC350X250DF2LXHXG0RVOA50	350X250	foam, Ø27x12mm	straight	maxi	Without	ISO 9409-1-50-4-M6	100	565	1.9
68	68	CVGC350X250DF2LXHXG0RVAA50	350X250	foam, Ø27x12mm	straight	maxi	Vacuum switch with electronic display	ISO 9409-1-50-4-M6	100	565	1.9
69	69	CVGC350X250DF2LXHXG0RVOA63	350X250	foam, Ø27x12mm	straight	maxi	Without	ISO 9409-1-63-4-M6	100	565	1.9
70	70	CVGC350X250DF2LXHXG0RVAA63	350X250	foam, Ø27x12mm	straight	maxi	Vacuum switch with electronic display	ISO 9409-1-63-4-M6	100	565	1.9
71	71	CVGC350X250DF2LXHXG0RVOA80	350X250	foam, Ø27x12mm	straight	maxi	Without	ISO 9409-1-80-6-M8	100	565	1.9
72	72	CVGC350X250DF2LXHXG0RVAA80	350X250	foam, Ø27x12mm	straight	maxi	Vacuum switch with electronic display	ISO 9409-1-80-6-M8	100	565	1.9
