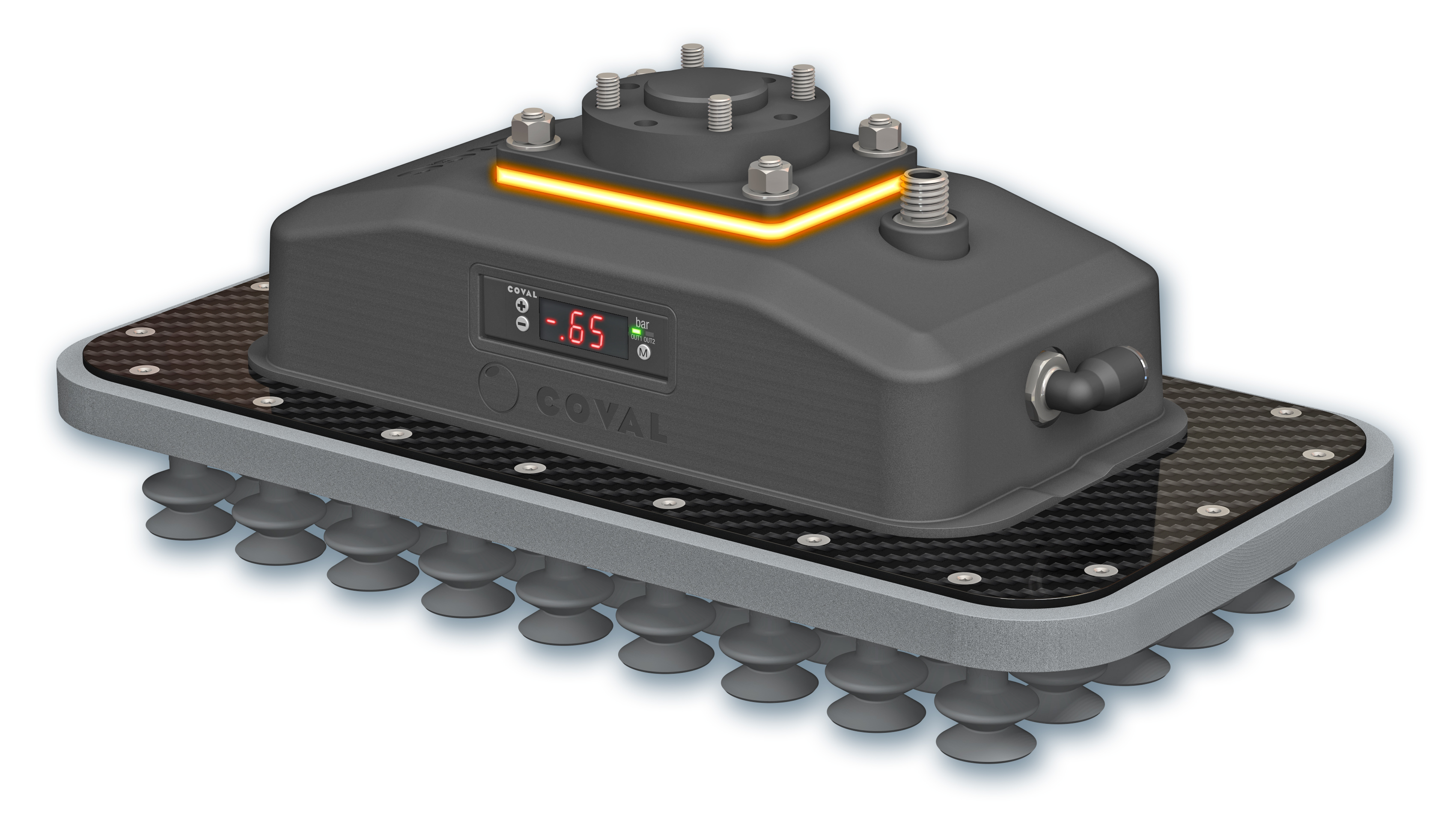

Carbon Vacuum Grippers with integrated vacuum generator, CVGC-M2

Manufacturer COVAL
Description Carbon Vacuum Gripper, 240X120 mm, with integrated vacuum generator, vacuum control and 24 V DC NC blow-off, gripping interface maxi type, 1.5 bellows suction cups Ø 33 mm in natural rubber, mounting Ø50 mm (ISO 9409-1-50-4-M6)
Part number CVGC240X120DVSA33JKXHXM2SVAA50
Dimensions 240x120 mm
Capacity 38 kg
Gripping force 180 N
Air drawn in 550 Nl/min
Air consumed 280 Nl/min
Mass 1.3 kg
CAD models
Please make sure this software has been installed.

Product selection

Contact the supplier

COVAL

COVAL

Manufacturer of components and systems for vacuum handling
