By Stamperia Carcano Giuseppe S.p.a.

CYFX

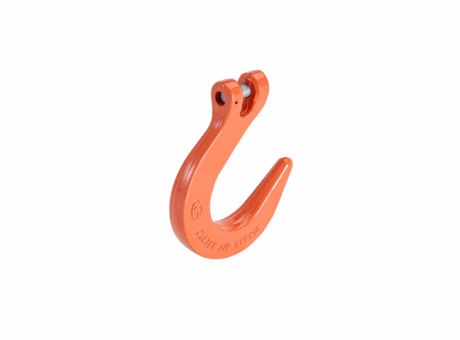

FOUNDRY CLEVIS HOOK

Manufacturer	Stamperia Carcano Giuseppe S.p.a.
Description	FOUNDRY CLEVIS HOOK
Item Number	CYFX 06
Chain	6
inch	1/4
A (mm)	53.5
B (mm)	8.5

C (mm)	6.5
G (mm)	22
H (mm)	26
R (mm)	91
PxL (mm)	7,5x17,5
Weight (Kg)	0.7
W.L.L. (Kg)	1400

CAD models

Request for quotation

Product selection

Index	Selector	Item Number	Chain	inch	A (mm)	B (mm)	C (mm)	G (mm)	H (mm)	R (mm)	PxL (mm)	Weight (Kg)	W.L.L. (Kg)
1	1	CYFX 06	6	1/4	53.5	8.5	6.5	22	26	91	7,5x17,5	0.7	1400
2	2	CYFX 07	7	9/32	64	10	11.5	26	31	120.4	9x22,5	1.1	1900
3	3	CYFX 08	8	5/16	64	10	11.5	26	31	120.4	10x22,5	1.1	2500
4	4	CYFX 10	10	3/8	76	13	15	30	34	131	13x31,5	1.7	4000
5	5	CYFX 13	13	1/2	89	17	17.5	40	44.5	148	16x42	3.6	6700
6	6	CYFX 16	16	5/8	101	19	21.5	45	50.5	198.5	21x51,5	5.6	10000
