By Stamperia Carcano Giuseppe S.p.a.

CXXL

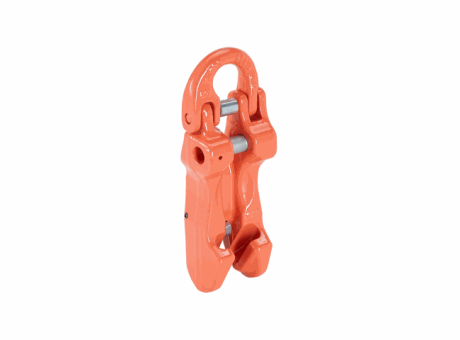

SHORT CLUTCH WITH SEMI CONNECTING LINK

Manufacturer	Stamperia Carcano Giuseppe S.p.a.
Description	SHORT CLUTCH WITH SEMI CONNECTING LINK
Item Number	CXXL 07S
Chain	7
inch	9/32

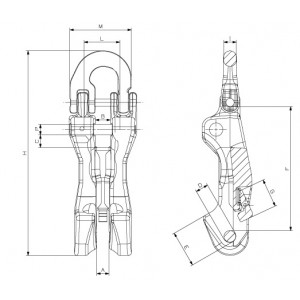

A (mm)	9.5
B (mm)	9.5
C (mm)	10
D (mm)	9.5

E (mm)	23.5
F (mm)	56
M (mm)	44.5
G (mm)	29
H (mm)	158
I (mm)	8.5
PxL (mm)	9x34
Weight (Kg)	0.82
W.L.L. (Kg)	1900

CAD models

Request for quotation

Product selection

Index	Selector	Item Number	Chain	inch	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	M (mm)	G (mm)	H (mm)	I (mm)	PxL (mm)	Weight (Kg)	W.L.L. (Kg)
1	1	CXXL 07S	7	9/32	9.5	9.5	10	9.5	23.5	56	44.5	29	158	8.5	9x34	0.82	1900
2	2	CXXL 08S	8	5/16	9.5	9.5	10	9.5	23.5	56	50	29	164	10	10x34	0.85	2500
3	3	CXXL 10S	10	3/8	12	12	14.5	12	32.5	78	60.5	36	193	12.5	13x39	1.61	4000
4	4	CXXL 13S	13	1/2	15.5	15.5	18	15.5	44	90	76	35	249.5	16	16x53	3.27	6700
5	5	CXXL 16S	16	5/8	19	21	21	19	50	106	97	38	303	20	21x70	5.75	10000
