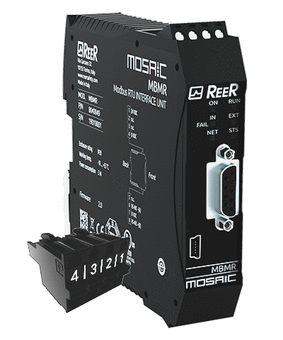

MOSAIC MBMRC - Fieldbus Communication Expansion Unit, MODBUS RTU, Clamp Terminal Blocks

Manufacturer	ReeR Safety
Description	Fieldbus Communication Expansion Unit, MODBUS RTU, Clamp Terminal Blocks
Manufacturer Part Number	1100182
Approvals	CE, TÜV, UL
Programmable	Yes, software included

FieldBus Protocol	ModBus RTU
Fastening	35 mm DIN Rail Fastening
Degree of protection	IP20 for housing - IP2X for terminal blocks
Connections	Removable terminal blocks, clamp contacts - ModBus RTU protocol connector

CAD-Modelle

Angebotsanfrage

Produktauswahl

Index	Selector	Manufacturer Part Number	Power supply (VDC)	Approvals	Dimensions HxWxD (mm)	MSC Included	Programmable	FieldBus Protocol	Fastening	Degree of protection	Operating temperature (°C)	Connections	Status Signaling

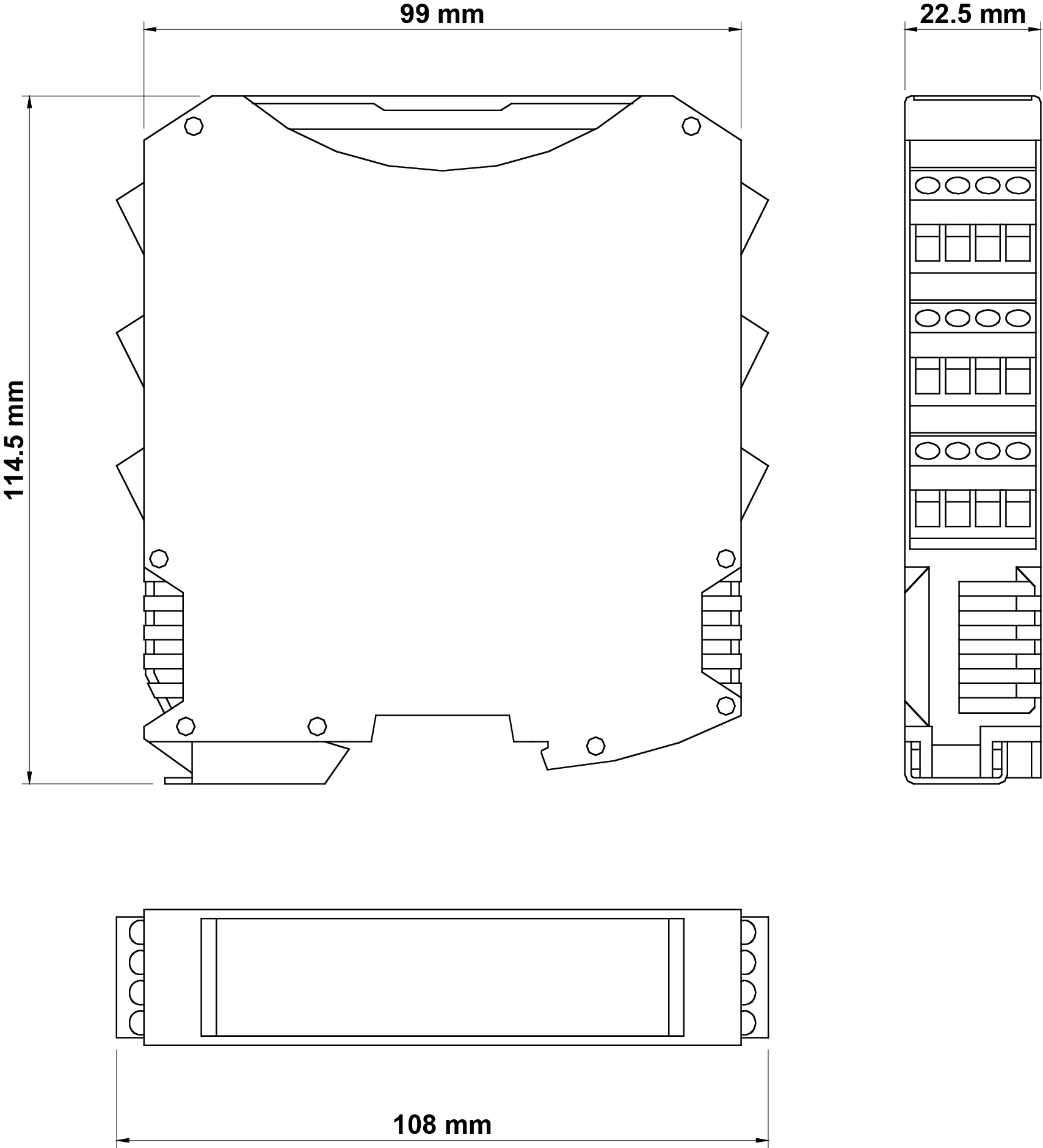

1	1	1100182	24 ± 20%	CE, TÜV, UL	108 x 22,5 x 114,5	Yes	Yes, software included	ModBus RTU	35 mm DIN Rail Fastening	IP20 for housing - IP2X for terminal blocks	-10 ... 55	Removable terminal blocks, clamp contacts - ModBus RTU protocol connector	LEDs indication for operating status and fault diagnosis

Produktbeschreibung

Expansion unit for connection to the most common industrial Field-Bus systems for diagnostics and data communication

Dokumentation

Product Page

Technical Manual

Kontaktdaten

ReeR Safety

Founded in Turin (Italy) in 1959, ReeR distinguished itself for its strong commitment to innovation and technology. A steady growth throughout the years allowed ReeR to become a point of reference in the safety automation in- dustry at a worldwide level. The Safety Division is in fact today a world leader in the development and manufacturing of safety optoelectronic sensors and controllers. ReeR is ISO 9001, ISO 14001 and ISO 45001 certified.
