LO-CARBON SENTINEL KINETIC HORIZONTAL

Manufacturer	Vent-Axia
Description	Lo-Carbon Sentinel Kinetic Horizontal 200ZH
Part Number	449540
Grade	Galvanised steel

CAD-modeller

Forespørgsel om pris

Valg af produkter

Index	Selector	Part Number	Description	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (fixing hole in mm)	H (fixing hole in mm)	I (mm)	J (mm)	K (mm)	Spigots (mm)	Weight

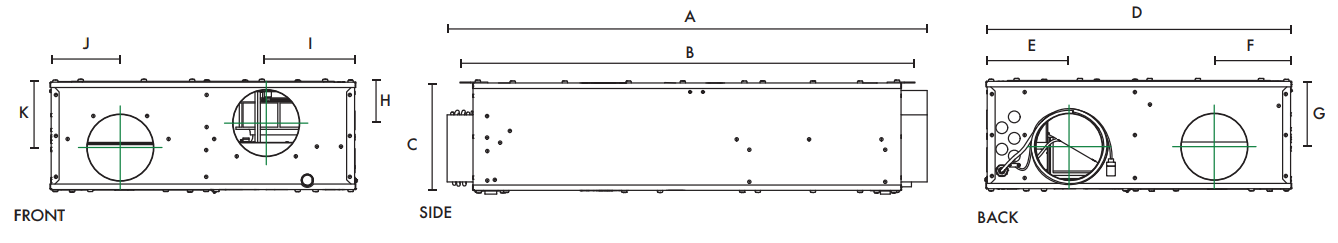

1	1	449540	Lo-Carbon Sentinel Kinetic Horizontal 200ZH	895	849	200	570	155	144	122	76	167	131	122	Ø125	26kg
2	2	449536	Lo-Carbon Sentinel Kinetic Horizontal 300ZH	985	940	301	720	184	179	187	102	279	174	187	Ø150	38kg

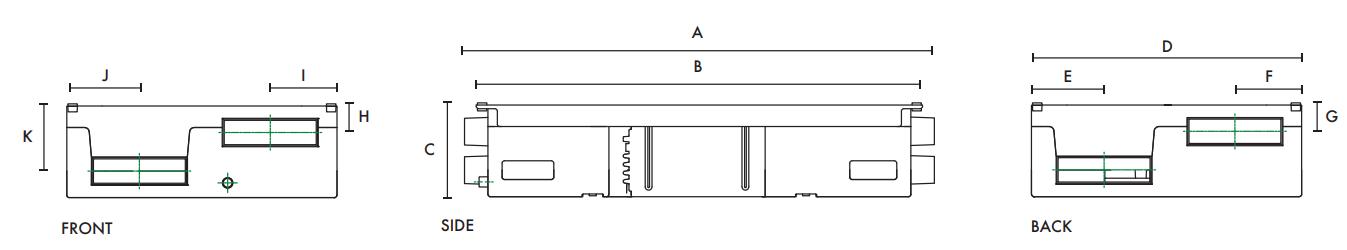

3	3	407162	Lo-Carbon Sentinel Kinetic Horizontal 200ZPH	1000	950	200	575	155	142	60	61	142	154	143	204x60	14kg
4	4	448778	Lo-Carbon Sentinel Kinetic Horizontal 200ZMH	895	849	200	570	195	140	54	66	168	138	143	204x60	26kg

Produktbeskrivelse

Manufactured in the UK
Building Regulation ADF compliant
Recognised in SAP PCDB
Energy Savings Trust best practice compliant
Up to 81% heat recovery whilst controlling condensation
Programmable Summer bypass
Digital controller for simple and accurate commissioning
External condensate connection
Plug and play controls; Humidistat, Ventwise, Wireless remote
LS inputs (Light Switch)
Self diagnosis for simplified fault finding
Adjustable delay on/delay off timer

Dokumentation

Catalogue Pages

Eco-Design Data (200ZP/ZPH/ZPM)

Eco-Design Data (200Z/ZH/300ZH)

Eco-Design Data (300ZH)

Installation & Commissioning Instruction (448733/448540/448638))

Installation & Commissioning Instruction (407161/407162/407476))
