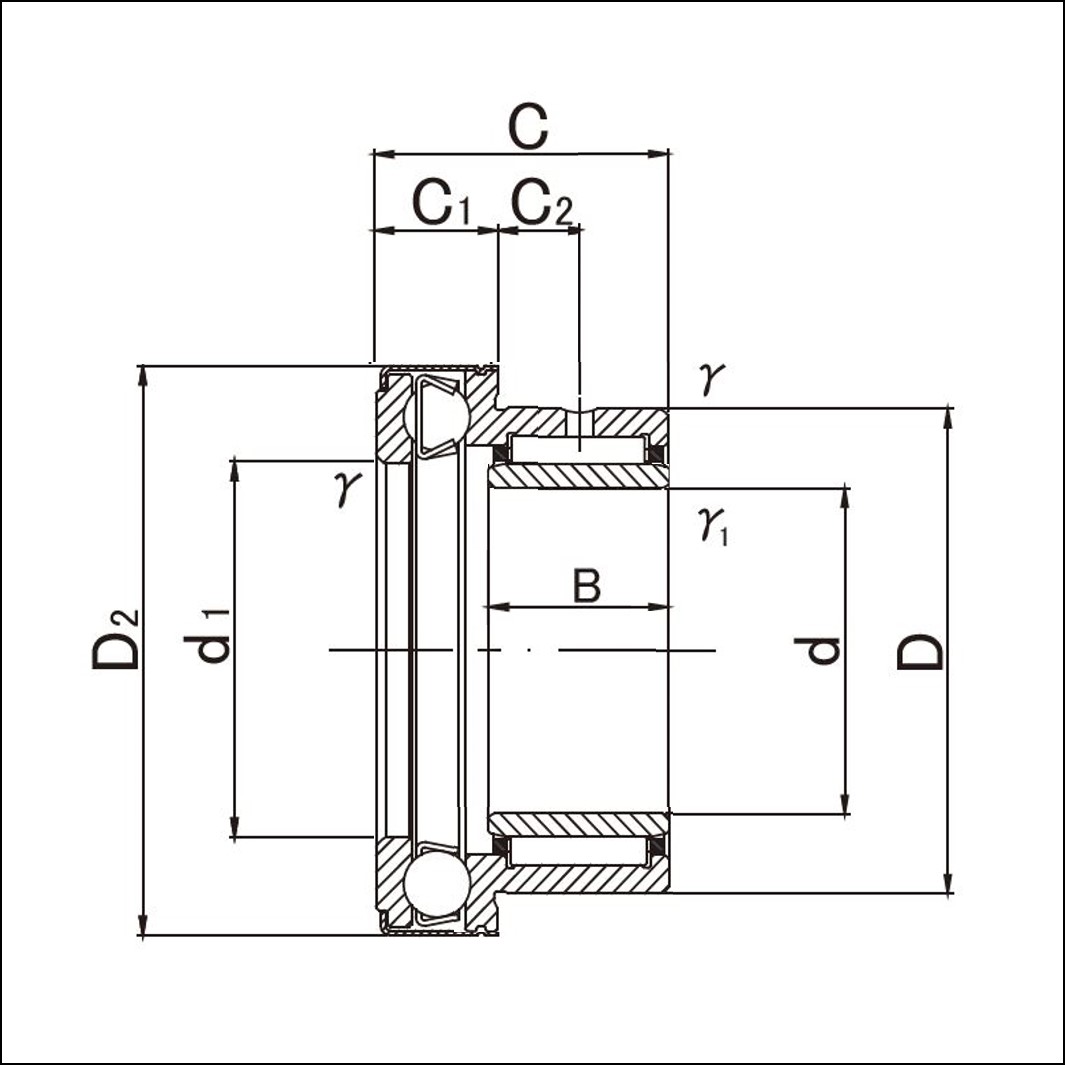

[COMBINED] Needle Roller Bearing NKXI..Z

With an inner ring, a dust cover



Manufacturer	JNS
Description	[Combined] Needle Roller Bearing with an inner ring - with a dust cover
Part Number	JNS_NKXI7Z
Designation	With dust cover
Inner Diameter d (mm)	7
Material	CARBON STEEL

Outer Diameter D (mm)	19
Outer Ring Width C (mm)	23
Outer Diameter(Thrust) D2 (mm)	25
Outer Ring Width(Thrust) C1 (mm)	9
Type	Combined

CAD-modeller

Forespørgsel om pris

Valg af produkter

Index	Selector	Part Number	Description	Designation	Inner Diameter d (mm)	Material	Outer Diameter D (mm)	Outer Ring Width C (mm)	Outer Diameter(Thrust) D2 (mm)	Outer Ring Width(Thrust) C1 (mm)	Type
1	1	JNS_NKXI7Z	[Combined] Needle Roller Bearing with an inner ring - with a dust cover	With dust cover	7	CARBON STEEL	19	23	25	9	Combined
2	6	JNS_NKXI9Z	[Combined] Needle Roller Bearing with an inner ring - with a dust cover	With dust cover	9	CARBON STEEL	21	23	27	9	Combined
3	7	JNS_NKXI12Z	[Combined] Needle Roller Bearing with an inner ring - with a dust cover	With dust cover	12	CARBON STEEL	24	23	29	9	Combined
4	8	JNS_NKXI14Z	[Combined] Needle Roller Bearing with an inner ring - with a dust cover	With dust cover	14	CARBON STEEL	26	25	31	9	Combined
5	9	JNS_NKXI17Z	[Combined] Needle Roller Bearing with an inner ring - with a dust cover	With dust cover	17	CARBON STEEL	30	30	36	10	Combined
6	10	JNS_NKXI20Z	[Combined] Needle Roller Bearing with an inner ring - with a dust cover	With dust cover	20	CARBON STEEL	37	30	43	11	Combined
7	11	JNS_NKXI25Z	[Combined] Needle Roller Bearing with an inner ring - with a dust cover	With dust cover	25	CARBON STEEL	42	30	48	11	Combined
8	12	JNS_NKXI30Z	[Combined] Needle Roller Bearing with an inner ring - with a dust cover	With dust cover	30	CARBON STEEL	47	30	53	12	Combined
9	13	JNS_NKXI35Z	[Combined] Needle Roller Bearing with an inner ring - with a dust cover	With dust cover	35	CARBON STEEL	52	32	61	13	Combined
10	2	JNS_NKXI40Z	[Combined] Needle Roller Bearing with an inner ring - with a dust cover	With dust cover	40	CARBON STEEL	58	32	66.5	14	Combined
11	3	JNS_NKXI45Z	[Combined] Needle Roller Bearing with an inner ring - with a dust cover	With dust cover	45	CARBON STEEL	62	35	71.5	14	Combined
12	4	JNS_NKXI50Z	[Combined] Needle Roller Bearing with an inner ring - with a dust cover	With dust cover	50	CARBON STEEL	72	40	86.5	17	Combined
13	5	JNS_NKXI60Z	[Combined] Needle Roller Bearing with an inner ring - with a dust cover	With dust cover	60	CARBON STEEL	85	40	96.5	18	Combined

Produktbeskrivelse

NKXI..Z(Ød: 7mm ~ 60mm)
